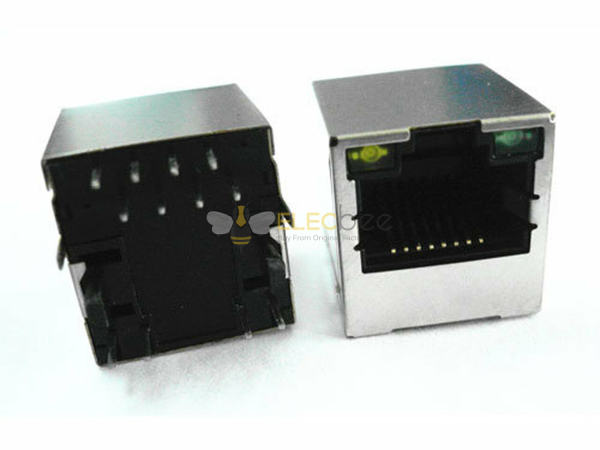

Elecbee HY951180A 1Port upright RJ45 Connector with Magnetics LED

SKU: EB-506-0010

Favorites

Key Features

High-quality upright RJ45 connector with built-in magnetics.
Durable metal shell for enhanced durability and shielding.
Compact 45° design saves space and improves cable management.

Datasheet

EB-506-0010

Description

1x1Port Tab upright RJ45 Connector with Integrated Magnetics LED for 10/100Base-TX NIC Applications

Highlights

RoHS Compliant (Pb Free)
Designed for Network Interface Card Application
Meets or Exceeds IEEE802.3 standards including 350uH Min OCL with 8mA
High performance for EMI suppression, Crosstalk and Return Loss
Minimum 1500Vrms isolation per IEEE 2.3 requirement
Minimize PCB space and Simplify PCB Layout
Less magnetic components to place on PCB, Higher reliability and yields

Resources

Datasheet

Extra Information

Brand:

HanRun Electronics

Isolation:

1500Vrms (UTP side to Chip side)

Insertion Loss:

-1.0dB Max@300KHz~100MHz

OCL:

350uH Min@100KHz 100mV with 8mADC

Return Loss:

-20dB Min@1MHz~10MHz / -16dB Min@10MHz~30MHz -12dB Min@30MHz~60MHz / -10dB Min@60MHz~80MHz

Common Mode Rejection:

-30dB Min@1MHz~50MHz -20dB Min@50MHz~150MHz

Crosstalk:

-40dB Typ.@1MHz~30MHz / -35dB Typ.@30MHz~60MHz -30dB Typ.@60MHz~100MHz

Compliant:

RoHS

Package:

RJ45 Plugin

LED Color:

Greed , Yellow
