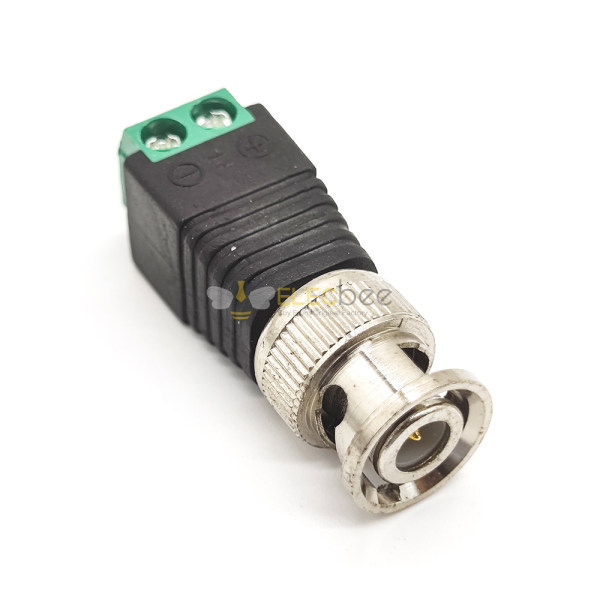

CCTV BNC Connector BNC Male Balun Connector for Coax Cat5 to CCTV Surveillance Video Camera

$1.80 Price drop reminder
  • Brand: Elecbee
  • Product Code: EB-001-0079
  • Availability: In Stock

- +
Total $1.80

Ask a Question About This Product

Your Name*
Your Email*
Topic*
Message
SUBMIT

Features:

  • Cable Connector, plug/male, Straight/180°, 50Ω;
  • Compact Design for less installation space required;
  • Easy quick connect and disconnect coupling;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of BNC Connectors:

Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.


bnc interface.jpg

Techinial Datasheet:

Electrical Characteristics

  • Impedance:50 ohm
  • Frequency Range: 0~4 GHz
  • VSWR: Straight type ≦ 1.22/3GHz / R/A type ≦ 1.30/3GHz
  • Dielectric Withstanding Voltage: 1500 V rms
  • Working Voltage: 500 V rms
  • Center Contact Resistance ≦ 1.5 mΩ (Milliohms max.)
  • Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
  • Insultation Resistance ≧5 × 10³ mΩ (Milliohms min.)

Mechanical Characteristics

  • Coupling: bayonet
  • Contact Retention: 6 lbs min.
  • Mating Durability: ≧500 cycles

Environmental Characteristics

  • Environmental Characteristics: Teflon -55oC~+155oC / POM -40oC~+60oC
  • Coupling Nut Retention: 100 lbs. min.
  • Vibration: MIL-STD-202 Method 204
  • Corrosion Resistance: MIL-STD-202 Method 101

Material:

Part Material Finish
Body Brass Nickel (Ni)
Center Contact Pin Brass Gold
Insulator Teflon None


Our Cooperated Connector Factory:

connector factory

Ask Question About Product

Note: HTML is not translated!
direction
directionStraight
Connector A Type
Connector A TypeBNC
Connector A Gender
Connector A GenderMale
Connector B Type
Connector B TypeTerminal
