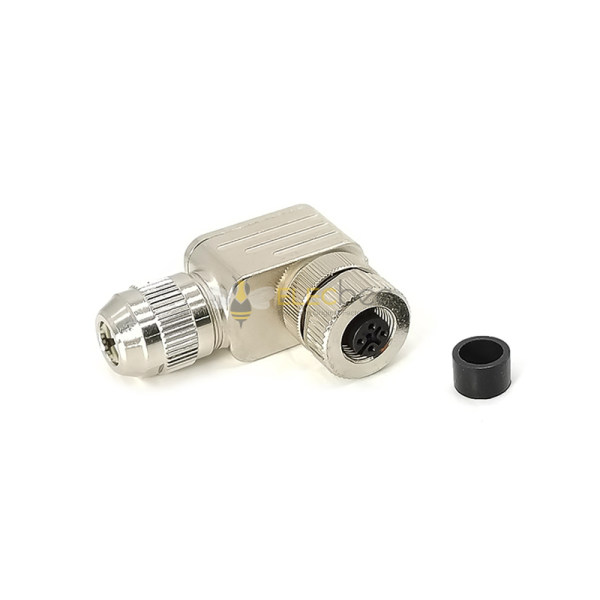

Elecbee M12 Field Wireable Connector A Code Right Angle 5pin Female Shield connector
SKU: EB-400-2385
Favorites
Key Features
Features:
- M12 Field Wireable Connector, 5pin, Female, Right Angle, A Code, Screw-Joint, Shield, Metal, Cable;
- thread locking mechanism, anti vibration locking design，12mm thread joint;
Easy quick connect and disconnect coupling; - High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality withmuch better price.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Screw Terminal
Contact Type
Female Pin
Shell Finish
Nickel Plated
Number of Positions
5 Pin
Operating Temperature
-20℃~+85℃
Shielding
Shielded
Ingress Protection
IP67(mated）
Rated Current
4A
Rated Voltage
60V
Connector Series
M12
Color
Silver
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
TPU
Insulation Color
Black
Key
A Code
Wire Gauge
22AWG
Description
M12 Field Wireable Connector
IP67/68 Weatherproof
|
Plug & Play Connections
|
Rugged Metal Housing
The M12 field wireable connectors are used to build custom patch cables, provide a quick-disconnect for a device, terminate field devices on an I/O block, or bring multiple sensor signals into one port. M12 field-installable connectors support higher bandwidth while providing an IP67 rated solution for demanding applications.
DIRECT DEAL
EASY ASSEMBLY
QUALITY ASSURANCE
MULTI CORE OPTIONAL
| M12 Field Wireable Connetor | |
| Coding | A / B / D / T / X |
| Number of Positions | 3 / 4 / 5 / 8 / 12 / 17 |
| Gender | Male / Female |
| Orientation | Straight / Right Angle |
| Mounting Type | Cable |
| Shell Material | Metal / Plastic |
| Termination Style | Screw-joint / Solder Type |
| Shield | Shield / Unshielded |
M12 Field Wireable TYPE
PRODUCT DESCRIPTION
1. Exquisite Craftsmanship Makes Connections More Secure
- Thickened pins/long life
- Copper-zinc material,high resistance,wear resistance
- Thickened cable,easy to remove and plug,tightly combined and not easy to fall off
3. STABLE PERFORMANCE,STRONG AND DURABLE
- Hight quality PA66 housing
- Thread locking mechanism,shock-proof locking design
- Thickened nylon is anti-corrosion,non-flammable,and has good insulation property
2. Safe and Reliable Meet the Standards to Create Safety
- Pure copper gold-plated contacts with exc-ellent electrical conductivity
- Fixed keys and multikeys to prevent blind insertion, misin- sertion, and skewed insertion
- Strong waterproof performance, in line with IP67/IP68 wa terproof requests
APPLICATION
