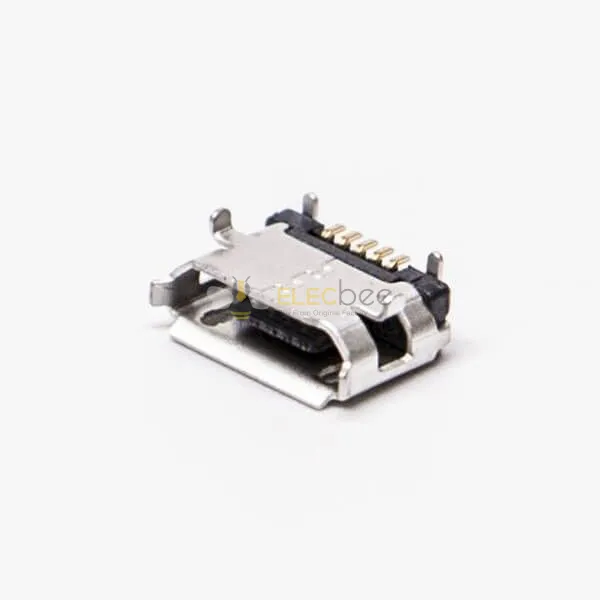

Micro USB B Female Connector 5 Pin SMT Type B Straight for PCB Mount

$1.25 Price drop reminder
  • Brand: Elecbee
  • SKU: EB-500-4013
  • Availability: In Stock
  • Sales: 3
  • Price Gradient
  • Price
  • 10+
  • $1.15
  • 30+
  • $1.06
  • 50+
  • $1.00
  • 100+
  • $0.94
  • 200+
  • $0.88
  • Ask for price for larger quantity
- +
Total Price: $1.25
Buy Now

Ask a Question About This Product

Your Name*
Your Email*
Topic*
Message
SUBMIT

product features.png

Features:

  • Micro USB,Type B,5Pin,Straight/180°,Female/Jack,SMT,PCB Mount,6.40-4.85;
  • More compact than Mini USB, meets environmental, health and safety requirements;
  • Full metal shielding, Flexible application;
  • Easy and Quick usage, Convenient recharging and communication;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • Communications: Satellite Phone.
  • Data: Field PC.
  • Consumers: Camcorder, Smartphone, MP3 Player, Bluetooth, Headphone, Smartwatch, Tablet, Reader, GPS, Laptop Coolers.
  • Industrial & Instrumentation: Industrial.


Electrical Characteristics

  • voltage Rating: 100V AC (rms)
  • Current Rating: 1.0A MAX
  • Contact Resistange: 10 milliohms max
  • Insulation Resistange: 1000M ΩMin
  • Dielectric Withstanding Voltage: 500 V DC/1min

Mechanical Characteristics

  • Durability : 10,000 cycles
  • Mating force: 35N max
  • UNmating force: 10N

Environmental Characteristics

  • Operating Temperature: -55°C to +85°C

Material:

Part Material Finish
Housing High temperature thermoplastic resin UL94V-0
Shield Stainless Steel Nickel Plating
Contact Copper Alloy Au over nickel



Where is your products origin? Are they certificated?

Elecbee have long-term cooperation agreements with many OEM factory in China to reduce the intermediate channel cost and help you save money. Our products all made strictly according to the relative global standard, to ensure the products have good compatibility and excellent quality.



What forms of payment do you accept?

Our main payment method include Paypal, Credit Card, Bank Transfer and so on. You could choose anyone at your convenience



When will you arrange shipment?

After confirming receipt of your payment, we will arrange the shipment as soon as possible and upload the courier number to the website for your easy tracking.

Under normal circumstances, the product will be sent out within 48 hours, if the package cannot be send out timely due to special circumstanceswe will contact you in advance and inform the specific reasons.



How to exchange or return?

1. You can apply to return within 30 days after receipt of the goods. Please make sure the outside package is intact, and products is in original condition. We will arrange your refund according to the relevant provisions once package received.

2. Return process: You Apply for Return - Approve Return You Arrange Return - Receive Products and make Inspection - We arrange Refund;

3. We will bear the freight charges for returns caused by us, for instance the quality problem; As to returns caused by the client, customer should be responsible for the shipping fee;

Ask Question About Product

Note: HTML is not translated!
  • Product Attribute

    Attribute Value

    Search

  • Terminal type

    Solder Type

  • Installation characteristics

    Surface Mount

  • Gender

    Female

  • direction

    Straight

  • Connector Type

    Micro B

  • Number of Positions

    5 pin

  • Port number

    Single

  • waterproof level

    Not Waterproof

  • Standard

    USB 2.0

  • Installation method

    PCB Mount
