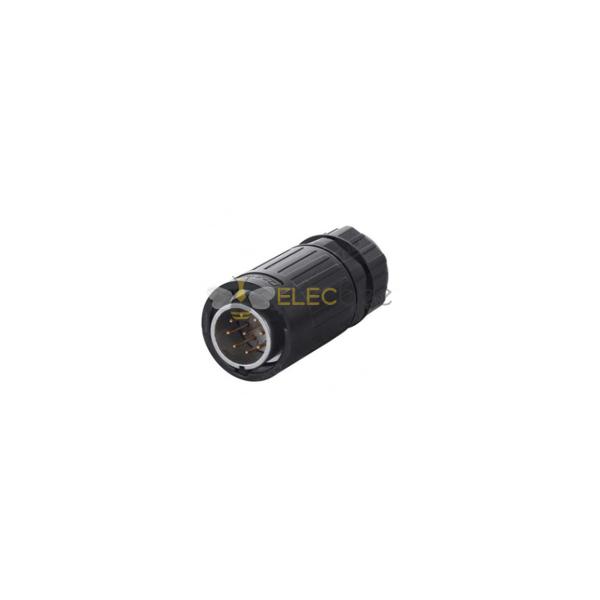

Elecbee YA-20 Series 9-Pin Male Plug IP67 Waterproof Power Connector

SKU: EB-115-0001
收藏
主要特点
展开
描述

Description

YA series has a unique buckled design guarantee the tight locking between plug and socket. The auto-covering waterproof cap of the socket made with alloy material and improves the convenience of operation. Satisfy the quality and meet the environmental protection requirements of international industrial equipment. The quick plug design allows one-hand plug/unplug. The socket and adapter plug use spring snap lock for connection, convenient and reliable, shock resistance.PBT materials shell, stable electrical performance, pressure-resisting, high-temperature resistance, anti-corrosive. The contact part shall be welded with the end of the
conductor.

For the mating part, please click here

Resources
Datasheet









Extra Information

Brand:
Linko Electric
Rated current:
5A
Number of pins:
9
Operating voltage:
250V
Withstanding voltage:
1500V
Contact resistance:
Contact dimension:
Phi 1x9
Insertion and extraction force:
2.7N Max
Temperature and humidity:
-40~+80C; 40C, 85%RH
Mating cycle:
1700 Times
Screw torque:
42-53 (N.m)
Protection level:
IP67
