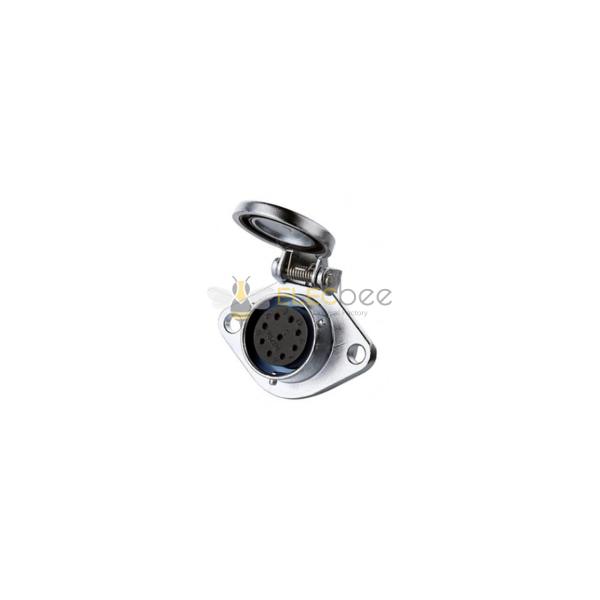

Elecbee YA-20 Series 9-Pin Female Socket IP67 Waterproof Power Connector Panel Mount
SKU: EB-115-0002
收藏
主要特点
展开
规格
属性
值
搜索
连接器类型
插座
安装类型
面板安装
安装特征
2孔法兰
端接
焊杯
接触件类型
母针
针位数
9芯
阻燃等级
UL94 V-0
工作温度
-40℃~+80℃
侵入防护
IP67
额定电流
5A
额定电压
250VAC
连接器系列
YA20
颜色
黑色
紧固类型
卡口式
方向
直式
外壳材料
锌合金
接触件材料
铜合金
接触件表面处理
镀金
绝缘材料
工程塑料
适配线径
1mm~11mm
描述
Description

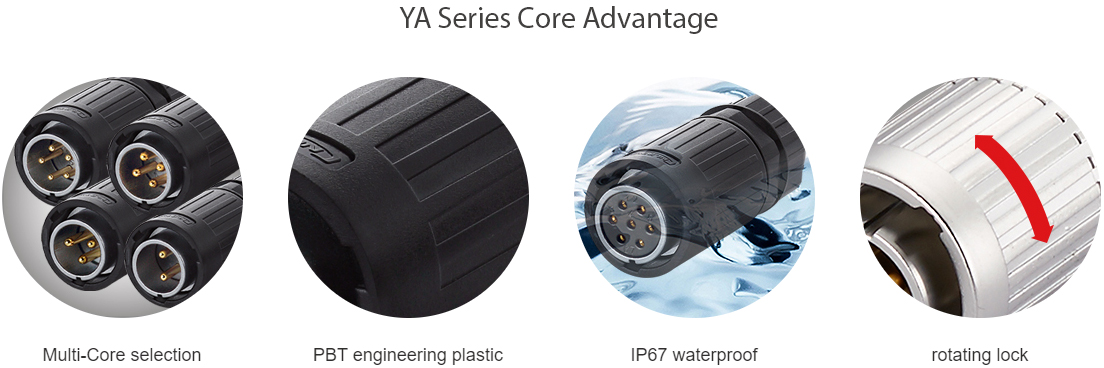

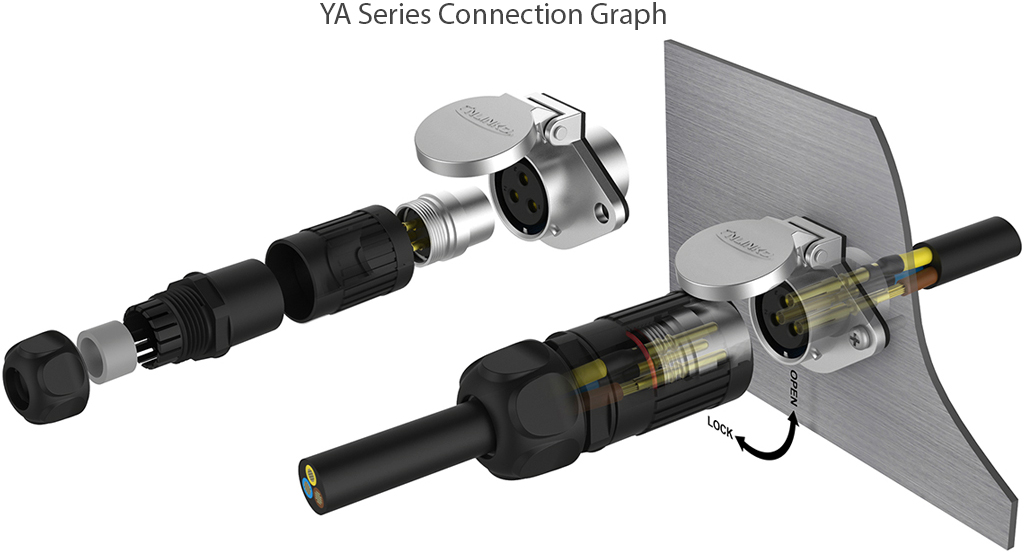

YA series has a unique buckled design guarantee the tight locking between plug and socket. The auto-covering waterproof cap of the socket made with alloy material and improves the convenience of operation. Satisfy the quality and meet the environmental protection requirements of international industrial equipment. The quick plug design allows one-hand plug/unplug. The socket and adapter plug use spring snap lock for connection, convenient and reliable, shock resistance.PBT materials shell, stable electrical performance, pressure-resisting, high-temperature resistance, anti-corrosive. The contact part shall be welded with the end of the
conductor.
For the mating part, please click here
Resources
Datasheet
Extra Information
Brand:
Linko Electric
Rated current:
5A
Number of pins:
9
Operating voltage:
250V
Withstanding voltage:
1500V
Contact resistance:
Contact dimension:
Phi 1x9
Insertion and extraction force:
2.7N Max
Mating cycle:
1700 Times
Temperature and humidity:
-40~+80C; 40C, 85%RH
Screw torque:
42-53 (N.m)
Protection level:
IP67
