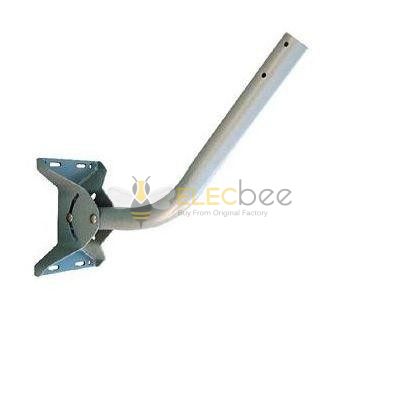

Elecbee Universal Adjustable J Pipe with Wall Mount Optional Pole Mount

Extra long universal antenna mount is roughly 2 ft in height. It consists of an adjustable J-Pipe with wall mount (included). It offers optional pole mount with U-bolt assembly (not included). This antenna mounting system has a universal bracket with your choice of two different length mounting options on the tube/pipe for the most demanding antenna mounting applications.

Top Quality Materials and Craftsmanship.

The construction is top quality with heavy gauge steel which goes through a galvanization (plating) process and then powder coat painted for extra weatherproof protection. It is not light gauge painted steel as you may find elsewhere. Fasteners used are also made of stainless steel.

Maximum Versatility Options For Successful Installation.

The mounting tube has two sets of holes to give max angular flexibility during installation. The mounting system feature a universal mounting bracket with a full 90 degrees of tilt. This flexibilty allows for greater versatility when dealing with the variety of installation challenges found at install sites and locations on building walls, roofs, etc.

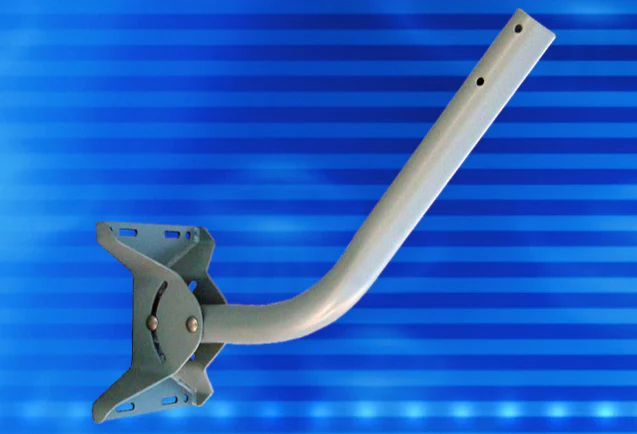

Aestheticall Pleasing Low Profile Wall Mount J Pipe for Antennas.

The stylish low profile and discreet styling makes it ideal for installations on various styles of buildings and in all neighborhoods including upscale posh areas. Pole has gray epoxy powder coat paint for aesthetic low profile blendability whereas other shiny silver metallic pipes are an eyesore.

Exact Dimensions in Both Placement Positions.

Dimensions upon adjustment of J-Pipe with wall mount for antennas is shown below:

As you can see, the dimension measurements vary upon adjustment of the pipe on the wall mount. The left diagram shows the measurements when the pipe is set higher which raises it and draws it closer to the wall. The right side diagram shows measurement when pipe is set lower which reduces its overall height and extends it further from the wall. The tube shown is a 1.5" diameter heavy duty tube. It offers a 90 degrees adjustable tilt. Mounting flange is 6 inches wide.

Features and Benefits:

• Attractive style.
• Galvanized steel with grey powder coated paint.
• Full 90 degree tilt adjustment possible.
• 1.5 inch heavy duty steel tube for most strength.
• Extremely versatile.
• Supports 150 lbs. load in both axis.
• Sets of holes in tube for more angular flexibility.
• Base accepts U-Bolts for pole mounting (not included).

Applications

• Customer premises equipment.
• Roof or wall mounting.
• Under-eave mounting.
• Interior or exterior.

General Specifications.
