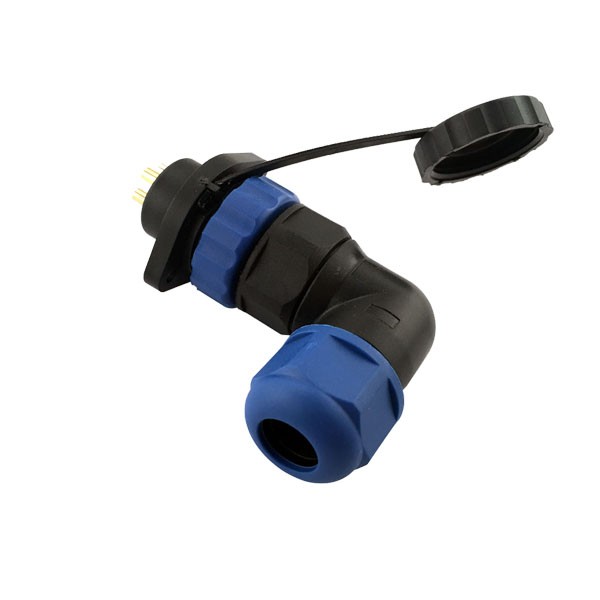

Elecbee SP21系列 防水航空连接器 14 Pin 焊接弯式对接弯公插头+2孔法兰插座一对

SKU: EB-410-2040
收藏

主要特点

特征:

  • SP21 系列连接器,弯式,标准型,2 孔法兰插座和插头,焊接触点,14 针
  • 每款产品均具有 IP68 防护等级,在恶劣环境下表现出色
  • 轻松快速连接和断开联轴器
  • 性价比高、品质好
展开
属性
连接器类型
插头,插座
安装类型
面板安装
端接
焊接
接触件类型
公针,母针
针位数
14芯
阻燃等级
UL94 V-0
工作温度
-40℃~+85℃
侵入防护
IP68
特征
防水
连接器系列
SP21
颜色
黑色, 蓝色
紧固类型
螺纹式
方向
90° 弯式
外壳材料
PA66, PC
接触件材料
黄铜
接触件表面处理
镀金
绝缘材料
PPS
外壳尺寸
21
绝缘颜色
黑色
描述

配送指南
运费与发货
发货周期
Elecbee 每天下午 5 点发货一次,周日除外。
发货后,预计送达时间取决于您选择的承运商。
快递:3-7 天。
标准邮政:7-20 天。
运费标准您订单的运费可在购物车中查看。
发货选项我们提供快递和标准配送服务。
发货追踪订单发货后,我们将通过邮件通知您追踪号码。您可以使用“我的订单追踪”功能追踪您的订单。
退货与保修退货通常在发货日期30天内完成退货申请。请联系客服获得退货授权。商品须未使用且保持原包装。运费由客户承担。
保修所有Elecbee购买商品均享有30天无理由退款政策,以及1年制造缺陷保修。
此保修不适用于因客户组装不当、未按说明操作、产品改装、疏忽或不当操作而造成的缺陷。
下单与订购如何订购Elecbee接受在线订单。
加入购物车 > 结账 > 提交订单 > 完成支付 > 发货
支付支持 PayPal、信用卡(包括 Visa、MasterCard、美国运通卡)以及银行转账。
