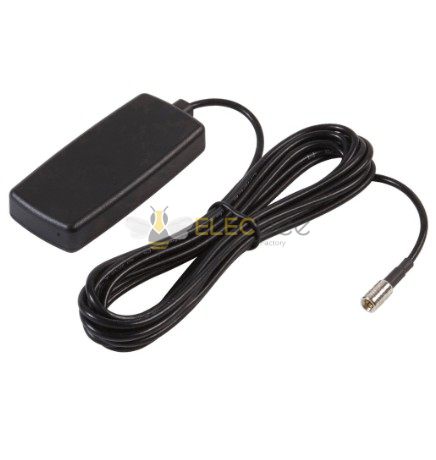

Elecbee Interior Vehicle Antenna w/ 10 ft. LMR100 Cable & SMB Female Connector

SKU: EB-201-2393

主要特点

展开

描述

Product Description

Car Interior Antenna with SMB Connector | weBoost 314419 by Wilson Electronics.

3G 4G LTE Inside Vehicle Server or Broadcast Antenna for Car, Truck, RV is Interior Vehicle Antenna with 10 feet LMR-100 Cable, and SMB Plug (Female) Connector. It is a 50 Ohm Slim Low Profile Antenna for broadcasting or serving wireless signals received from outside through exterior antenna and cellular amplifier. Installation is simple: Place the antenna vertically or horizontally and you will still get optimal performance. This antenna will work with any multi-user vehicle cell phone booster that requires a SMB connection. It is already included in weBoost Drive Reach series kits.

Works on all worldwide cellular bands for voice and 4G data: LTE/ CDMA/ GSM/ UMTS/ AWS.
High performance for all cellular repeater-boosters.
Supports 4G LTE, 3G & 2G.
Designed for in-vehicle installation.
High efficiency & compact design.
UV stable white sealed radome.
Rugged & waterproof for all weather operation.
Simple install.
Ground plane independent.
2-year warranty.

Kit Includes:

4G In-Vehicle Server Antenna with attached 10 ft. cable and SMB connector, Velcro Adhesive Strip, Adhesive Strip, Alcohol Wipe.

Specifications:

Frequency Band (MHz)	698-960 \| 1710-2170 \| 2500-2700
Return Loss (dB)	~-13.1 \| ~-16.7 \| ~-11.6
VSWR	~1.9:1 \| ~1.4:1 \| ~1.8:1
Efficiency (%)	~59 \| ~55 \| ~31
Peak Gain (dBi)	~3.4 \| ~2.1 \| ~1.0
Average Peak Gain (dBi)	~-2.3 \| ~-2.5 \| ~-5.1
Impedance (Ohm)	50
Polarization	Linear
Radiation Pattern	Omni-Directional
Max Power	25W
Cable Type (ft.)	LMR100
Cable Length (Feet)	10
Connector	SMB Female Plug Connector
Dimensions (in/ mm)	3.2x1.4x.5 / 83x35x13.3
Antenna weight (lb / kg)	0.23 / 0.104
Packing weight (lb / kg)	0.86 / 0.39
Mounting	Velcro / Adhesive
Radome Material	ABS Anti UV
Radome Color	Black
Water Resistance	IPX Weather Rated
Operating temperature (°C/ F°)	-40 to +85 /-40 to +185
Substance Compliance	RoHS

*Antenna Measurement Conditions: Mounted on 30 x 30 x 0.25 cm, ABS Plate, 200 cm of Cable LMR100, Measured in Certified CTIA 3D Anechoic Chamber. Data from third party test facility, Antenna Test Lab - Experience, Expertise, Insight.

Return Loss:

Voltage Standing Wave Ratio (VSWR):

RF Efficiency:

Antenna Peak Gain:

Antenna Average Gain:

Radiation Pattern Reference:

750 MHz and 850 MHz Radiation Patterns:

940 MHz and 1750 MHz Radiation Patterns:

1850 MHz and 1950 MHz Radiation Patterns:

2100 MHz and 2600 MHz Radiation Patterns:
