Elecbee Home Inside Antenna (Plastic Cover, 75 Ohm)
SKU: E-201-2476
收藏
主要特点
Works on all worldwide cellular bands for voice and 4G data: LTE/ CDMA/ GSM/ UMTS/ AWS.
- High performance for cellular repeater-boosters.
- High gain signal output.
- Boost 698-960 and 1710-2700 MHz cellular frequencies.
- Designed for building interior installation.
- High efficiency and compact design.
- Boosts voice and data.
- Simple install kit with wall mount bracket and desk stand.
- 2-year warranty.
Please note that this kit is for signal amplifiers with interior antenna port of 75 Ohms impedance so please confirm this on your booster device or check its user guide/ manual to confirm. If you have a 50 Ohm cellular amplifier, simply check and choose from our 50 Ohms antenna expansion kits section.
White Panel Antenna Technical Specs.
| Model Number | 314444. |
|---|---|
| Frequency Band (MHz) | 698-806, 806-960, 1710-1880, 1900-2200, 2200-2700. |
| Peak Gain (dBi) | 5.75, 6, 7.3, 7.33, 7.62. |
| Efficiency (%) | 65.80, 63.34, 66.77, 55.19, 55.17. |
| Half-Power Azimuth Beamwidth (°) | 79, 72, 56, 51, 55. |
| Half-Power Elevation Beamwidth (°) | 87, 89, 86, 75, 48. |
| Front-to-Back Ratio (dB) | >10, >17, >15, >12. |
| VSWR | <1.5:1. |
| Polarization | Horizontal. |
| Impedance | 75 Ohm. |
| Maximum Input Power | 50 watts. |
| Antenna Type | Wide-Band Directional. |
| Connectors | F-Female. |
| Antenna Dimensions | 8.875 x 7.125 x 2.625 inches. |
| Antenna Shipping Dimensions | 11.5 x 7.83 x 3.5 inches. |
| Weight | 1.75 lbs. |
| Radiator Material | PCB & Aluminum. |
| Radome Material | Plastic-ChiMei PC 385. |
| UPC | 811815029991 |
RF Antenna Indoor Mounting Options:
展开
描述
Product Description

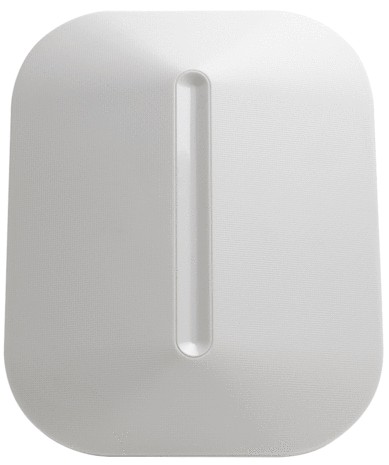

White Color Plastic Inside Panel Antenna (75 Ohm) | weBoost 314444 by Wilson Electronics / WilsonPro.
Home Inside Antenna with plastic cover is a proprietary indoor antenna made exclusively for weBoost Home boosters. It is noted for its sleek exterior, high performance, and intuitive wall-mount bracket.
With the included 3M Command Strips, the Home Inside Directional Antenna securely mounts to interior walls in a vertical or horizontal configuration. The antenna’s plastic housing allows for quick cleaning and maintenance. It also features a built-in kickstand for shelf placement.
Antenna Kit Contents:
