Elecbee GT500温湿度控制模块带传感器和连接电缆
SKU: EB0043183
收藏
主要特点
展开
描述
产品电气特性：
湿度测量范围：0%RH
测温范围：-40℃~80℃
分辨力：湿度 0.1%RH，温度 0.1
测量精度：±3%RH； ±0.5%℃
控制精度：0.1%RH； ±0.1%℃
刷新率：1S
输入电压：5V~24V DC
测量输入：AM2301温湿度一体传感器
输出：两路10A继电器
环境要求：-10℃--60℃，湿度20%--85%
整体功耗：静态电流≤20ma，拉电流≤50ma。
功能：
- 具有温湿度控制功能。
- 可实时显示当前温度和湿度。
- 具有超限报警功能。
- 继电器工作指示功能。
- 具有电源反接保护功能。当电源接上计数器时控制器不工作。
指示灯：
1、D8为温度继电器指示灯。当D8灯亮时，加热（冷却）设备开始工作。
2. D9 is a humidity indicator relayindicator lamp.Humidification/dehumidificationequipment began to work when the D9 light is turn on.
3. The display is showing the real time humidity valuewhen the green D5 light is turn on.The display is showing the real time temperature valuewhen the D5 lamp goes out.
功能说明：
1、高温启动-冷却方式：
Refrigeration equipmentbegins toworkwhen the starting temperature value is greater than the stop temperature value and the temperaturemeasurement is greater than or equal to the beginning temperature.Refrigeration equipment will stop workingwhen the temperaturemeasurementis less than or equal to the stop temperature.
For example,Set the starting temperature to 20℃,Stop temperature is 15℃,D8 light is turn on and refrigeration equipment work when the detection temperature is greater than or equal to 20℃.D8 lightwent offand refrigeration equipment will stop workingwhen the temperature value is less than 15℃.
2.低温启动-加热方式：
Heating equipment begins to workwhen the starting temperature value is less than the stop temperature value and the temperature is less than or equal to the beginning temperature.Heating equipment will stop workingwhen the test temperature is greater than or equal to the stop temperature.
For example,Set the starting temperature to 15℃,Stop temperature is 20℃.D8 lights is turn onand Heating equipment begins to workwhen the temperature measurementvalue is less than or equal to 15℃. D8lightwent off and Heating equipment to stop workingwhen the temperature measurementvalue is greater than or equal to the stop temperature.
3. 高湿启动-干燥剂模式：
The system automatically determines the mode of the dehumidificationwhen the startting humidity value is higher than the value of the stop humidity.In this mode,dehumidificationequipment to start workwhen humidity detection is greater than or equal to the beginning of humidity.Dehumidificationequipmentwill stop workingwhen the humidity detection is less than or equal to the stop humidity.
For example,Set the starting humidity to 60%RH,Stop humidity is 40%RH.Indicator light D9 lamp is turn onand dehumidificationequipmentstart to workwhen the detected humidity value greater than or equal to 60%RH.Indicator light D9 went off and dehumidificationequipmentto stop workingwhen Humidity detection value is less than or equal to 40%RH.
4. Low humidity start-humidification mode
The system automatically enters the humidification modewhen the set start humidity is less than the value of the humidity value.In this mode,Humidification equipment began to workwhen the humidity detection is less than or equal to the beginning of humidity. Humidification equipment will stop workingwhen the humidity detection is Greater than or equal to the beginning of humidity.
For example,Set the starting humidity to 40%RH,Stop humidity is 60%RH, Indicator light D9 is turn on andhumidification equipment into the workwhen the humidity detection value is less than or equal to 40%RH.Indicator light D9 went off and humidification equipmentto stop workingthe humidity detection value isgreater than or equal to 60%RH.
5、温度报警方式：
显示屏显示Axx（默认为A00）并在开机时闪烁3秒，您可以使用“+”和“-”设置警报
Mode,Alarm modes are defined as follows:
A00：报警功能关闭（默认）
A01：当前检测到的湿度超过启动温度或停止温度1℃，蜂鸣器报警。
A02：当前检测到的湿度超过启动温度或停止温度2℃，蜂鸣器报警。
A03：当前检测到的湿度超过启动温度或停止温度3℃，蜂鸣器报警。
and so on,max can be set A30.
For example ,Set alarm mode A03,Starting temperature is20℃,Stop temperatureis30℃, Buzzer sound alarm when the measured temperature is above 33℃or below 17℃
具体设置方法：
Notes:The following settings are automatically saved to EEPROM
1.设置起始温度：
Long press S button for 3 seconds,Red light D3 start flashing. Display showing starting temperature value at this moment, Press + and - button to adjust this value, Long press is continuous adjustment. Long press S button to exit the adjustmentafter the adjustment is completedor automatic exit without key action in 10S.
2.设置停止温度：
Long press S button for 3 seconds,Red light D3 start flashing. Short press SET button once againand red LED D3 long bright,Display showing stoptemperature value at this moment,Press + and - button to adjust this value,Long press is continuous adjustment.Long press S button to exit the adjustmentafter the adjustment is completedor automatic exit without key action in 10S.
3. Set up the startinghumidity:
Long press S button for 3 seconds,Red light D3 start flashing.Short press SET buttontwice againand red LED D4start flashing.The display screen displays the starting humidity value, this value can be adjusted by pressing the + and - buttons,long press is continuous adjustment.Long press S button to exit the adjustmentafter the adjustment is completedor automatic exit without key action in 10S.
4.设置停止湿度
Long press S button for 3 seconds,Red light D3 start flashing.Short press SET buttonthree times againand red LED D4start flashing.Display screen displays the value of the stop humidity at this time, this value can be adjusted by pressing the + and – buttons, long press is continuous adjustment.Long press S button to exit the adjustmentafter the adjustment is completedor automatic exit without key action in 10S.
5.设置温度模型
Long press S button for 3 seconds,Red light D3 start flashing.Short press SET buttonfourtimes againand red LED D3 and LED D4startflashingatthesametime. At this time the display screen display "C" or "F", this value can be adjusted by pressing the + and – buttons.C means that the current temperature model is degrees Celsius,F means that the current temperature pattern is Fahrenheit.Long press S button to exit the adjustmentafter the adjustment is completedor automatic exit without key action in 10S.
6.设置闹钟模式
另见“功能说明” 5.温度报警方式。
7.恢复出厂设置
Hold + and - press the button and then boot,Display screen display "rrrr",All settings are restored to factory settings after Buzzer sound threetimes.

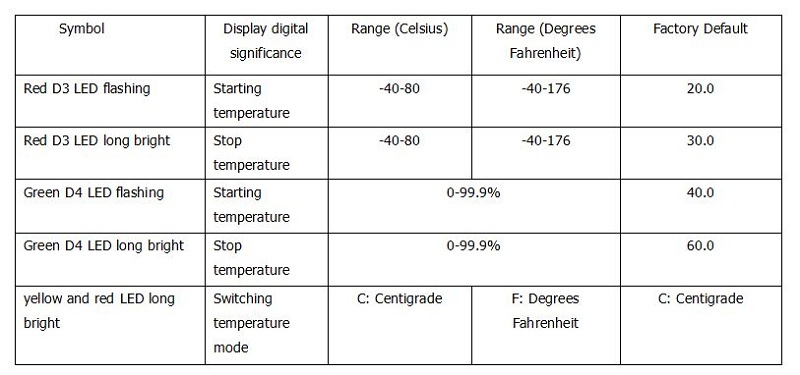

指示灯状态：
套餐包括：
1 x 温湿度控制模块
1 个传感器
1 x 连接电缆
湿度测量范围：0%RH
测温范围：-40℃~80℃
分辨力：湿度 0.1%RH，温度 0.1
测量精度：±3%RH； ±0.5%℃
控制精度：0.1%RH； ±0.1%℃
刷新率：1S
输入电压：5V~24V DC
测量输入：AM2301温湿度一体传感器
输出：两路10A继电器
环境要求：-10℃--60℃，湿度20%--85%
整体功耗：静态电流≤20ma，拉电流≤50ma。
功能：
- 具有温湿度控制功能。
- 可实时显示当前温度和湿度。
- 具有超限报警功能。
- 继电器工作指示功能。
- 具有电源反接保护功能。当电源接上计数器时控制器不工作。
指示灯：
1、D8为温度继电器指示灯。当D8灯亮时，加热（冷却）设备开始工作。
2. D9 is a humidity indicator relayindicator lamp.Humidification/dehumidificationequipment began to work when the D9 light is turn on.
3. The display is showing the real time humidity valuewhen the green D5 light is turn on.The display is showing the real time temperature valuewhen the D5 lamp goes out.
功能说明：
1、高温启动-冷却方式：
Refrigeration equipmentbegins toworkwhen the starting temperature value is greater than the stop temperature value and the temperaturemeasurement is greater than or equal to the beginning temperature.Refrigeration equipment will stop workingwhen the temperaturemeasurementis less than or equal to the stop temperature.
For example,Set the starting temperature to 20℃,Stop temperature is 15℃,D8 light is turn on and refrigeration equipment work when the detection temperature is greater than or equal to 20℃.D8 lightwent offand refrigeration equipment will stop workingwhen the temperature value is less than 15℃.
2.低温启动-加热方式：
Heating equipment begins to workwhen the starting temperature value is less than the stop temperature value and the temperature is less than or equal to the beginning temperature.Heating equipment will stop workingwhen the test temperature is greater than or equal to the stop temperature.
For example,Set the starting temperature to 15℃,Stop temperature is 20℃.D8 lights is turn onand Heating equipment begins to workwhen the temperature measurementvalue is less than or equal to 15℃. D8lightwent off and Heating equipment to stop workingwhen the temperature measurementvalue is greater than or equal to the stop temperature.
3. 高湿启动-干燥剂模式：
The system automatically determines the mode of the dehumidificationwhen the startting humidity value is higher than the value of the stop humidity.In this mode,dehumidificationequipment to start workwhen humidity detection is greater than or equal to the beginning of humidity.Dehumidificationequipmentwill stop workingwhen the humidity detection is less than or equal to the stop humidity.
For example,Set the starting humidity to 60%RH,Stop humidity is 40%RH.Indicator light D9 lamp is turn onand dehumidificationequipmentstart to workwhen the detected humidity value greater than or equal to 60%RH.Indicator light D9 went off and dehumidificationequipmentto stop workingwhen Humidity detection value is less than or equal to 40%RH.
4. Low humidity start-humidification mode
The system automatically enters the humidification modewhen the set start humidity is less than the value of the humidity value.In this mode,Humidification equipment began to workwhen the humidity detection is less than or equal to the beginning of humidity. Humidification equipment will stop workingwhen the humidity detection is Greater than or equal to the beginning of humidity.
For example,Set the starting humidity to 40%RH,Stop humidity is 60%RH, Indicator light D9 is turn on andhumidification equipment into the workwhen the humidity detection value is less than or equal to 40%RH.Indicator light D9 went off and humidification equipmentto stop workingthe humidity detection value isgreater than or equal to 60%RH.
5、温度报警方式：
显示屏显示Axx（默认为A00）并在开机时闪烁3秒，您可以使用“+”和“-”设置警报
Mode,Alarm modes are defined as follows:
A00：报警功能关闭（默认）
A01：当前检测到的湿度超过启动温度或停止温度1℃，蜂鸣器报警。
A02：当前检测到的湿度超过启动温度或停止温度2℃，蜂鸣器报警。
A03：当前检测到的湿度超过启动温度或停止温度3℃，蜂鸣器报警。
and so on,max can be set A30.
For example ,Set alarm mode A03,Starting temperature is20℃,Stop temperatureis30℃, Buzzer sound alarm when the measured temperature is above 33℃or below 17℃
具体设置方法：
Notes:The following settings are automatically saved to EEPROM
1.设置起始温度：
Long press S button for 3 seconds,Red light D3 start flashing. Display showing starting temperature value at this moment, Press + and - button to adjust this value, Long press is continuous adjustment. Long press S button to exit the adjustmentafter the adjustment is completedor automatic exit without key action in 10S.
2.设置停止温度：
Long press S button for 3 seconds,Red light D3 start flashing. Short press SET button once againand red LED D3 long bright,Display showing stoptemperature value at this moment,Press + and - button to adjust this value,Long press is continuous adjustment.Long press S button to exit the adjustmentafter the adjustment is completedor automatic exit without key action in 10S.
3. Set up the startinghumidity:
Long press S button for 3 seconds,Red light D3 start flashing.Short press SET buttontwice againand red LED D4start flashing.The display screen displays the starting humidity value, this value can be adjusted by pressing the + and - buttons,long press is continuous adjustment.Long press S button to exit the adjustmentafter the adjustment is completedor automatic exit without key action in 10S.
4.设置停止湿度
Long press S button for 3 seconds,Red light D3 start flashing.Short press SET buttonthree times againand red LED D4start flashing.Display screen displays the value of the stop humidity at this time, this value can be adjusted by pressing the + and – buttons, long press is continuous adjustment.Long press S button to exit the adjustmentafter the adjustment is completedor automatic exit without key action in 10S.
5.设置温度模型
Long press S button for 3 seconds,Red light D3 start flashing.Short press SET buttonfourtimes againand red LED D3 and LED D4startflashingatthesametime. At this time the display screen display "C" or "F", this value can be adjusted by pressing the + and – buttons.C means that the current temperature model is degrees Celsius,F means that the current temperature pattern is Fahrenheit.Long press S button to exit the adjustmentafter the adjustment is completedor automatic exit without key action in 10S.
6.设置闹钟模式
另见“功能说明” 5.温度报警方式。
7.恢复出厂设置
Hold + and - press the button and then boot,Display screen display "rrrr",All settings are restored to factory settings after Buzzer sound threetimes.
指示灯状态：
套餐包括：
1 x 温湿度控制模块
1 个传感器
1 x 连接电缆
