Elecbee DH24-RJ45 Series RJ45 Female Socket IP67 Waterproof Ethernet Connector Panel Mount

SKU: EB-506-0001

主要特点

展开

描述

Description

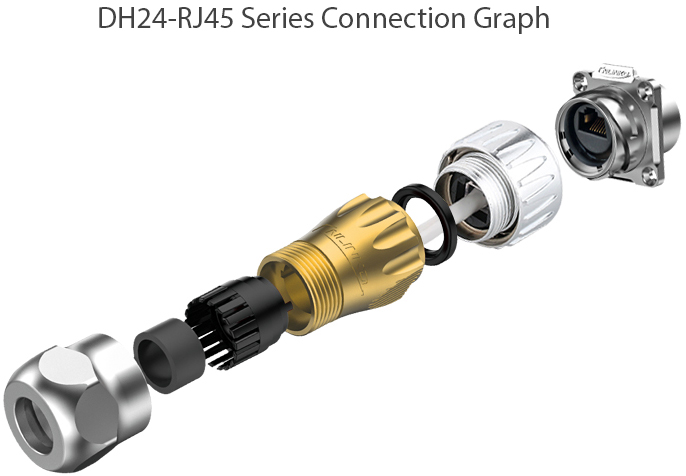

The RJ45 series connectors have multi-style connecting modes like 1/4 bayonet connect and quick plug-unplug applicable for harsh environments. Cable jacket with solid die-casted shell and unique dual-clip-clip wire saddle and sheath of cable applicable for common RJ45 plugs with electroplated shell against wind and rain. These connectors have a shielding system with high-frequency noise immunity and electromagnetic interference protection and protection level IP65 waterproof and dustproof. Compliance with D level or CAT 3e standard of EIA568B and ISO/IEC11801, RJ45 connectors compatible CAT5e, data transfer rate reach 10GBit/s.

For the mating part, please click here

Resources

Datasheet

Extra Information

Brand:

Linko Electric

Working temperature:

-25~85C, 85% RH Max

Operating voltage:

42V

Contact Resistance:

40mohm

Insulation Resistance:

500Mohm

Durability:

750 cycles

Rated current:

1.2A

Protection level:

IP67

Withstanding Voltage:

1000V

Insertion force:

22.25N Max
