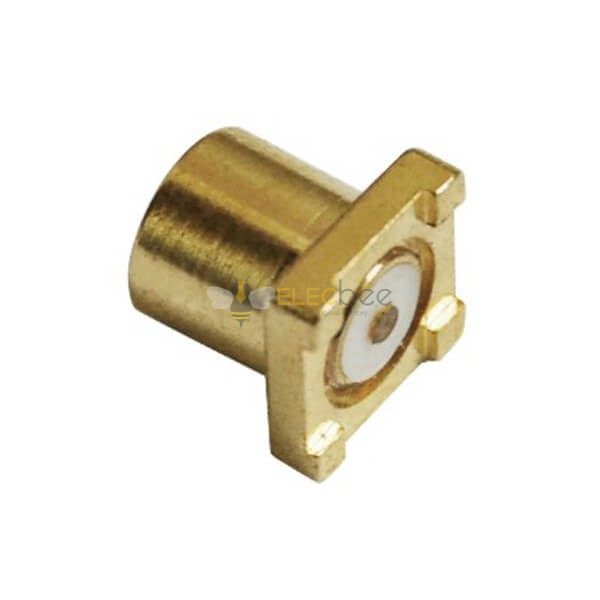

MCX Jack Connector Straight Coxa SMT for PCB Mount

$2.05 Price drop reminder
  • Brand: Elecbee
  • SKU: EB-004-0007
  • Availability: In Stock
  • Price Gradient
  • Price
  • 10+
  • $1.89
  • 30+
  • $1.74
  • 50+
  • $1.64
  • 100+
  • $1.54
  • 200+
  • $1.44
  • Ask for price for larger quantity
- +
Total Price: $2.05
Buy Now

Ask a Question About This Product

Your Name*
Your Email*
Topic*
Message
SUBMIT

Features:

  • Pcb Mount, Jack/female, Straight/180°, 50Ω, Surface Mount;
  • 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
  • Snap-on Interface ideal for quick Installation and discount;
  • High cost-effective with excellent boardband performance and low reflections.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of MCX Connectors:

Consumer Electronic: GPS, HDTV, Wireless Internet TV and Audio, smart phone antenna port,
Aerospace and Defense: GPS and Hand-held Device
Technology: Telemetry
Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Machine to machine communications


Techinial Datasheet:

Electrical Characteristics

  • Impedance:50 ohm
  • Frequency Range: 0~6 Ghz
  • VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
  • Dielectric Withstanding Voltage: 1000 V rms
  • Working Voltage: 335 V rms
  • Center Contact Resistance ≦ 5.0 mΩ  (Milliohms max.)
  • Outer Contact Resistance  1.0 mΩ  (Milliohms max.)
  • Insultation Resistance ≧ 1000 mΩ

Mechanical Characteristics

  • Coupling: Snap-on/Snap-off
  • Contact Retention: 4 lbs min.
  • Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  • Environmental Characteristics: Teflon -65°C ~ +155°C
  • Vibration: MIL-STD-202 Method204
  • Corrosion Resistance: MIL-STD-202 Method 101

Material:

Part Material Finish
Body Brass Au:1u"
Center Contact Pin Phosphor Au:3u"
Insulator Teflon White


Drawing:
