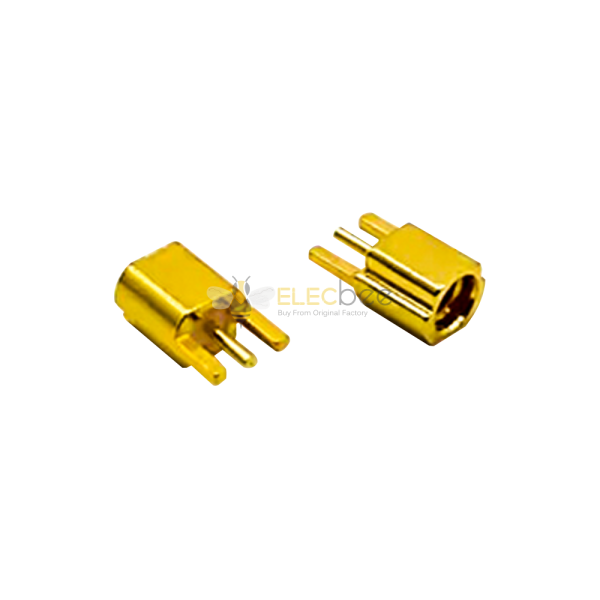

MMCX Offset Female Coaxial Connector Straight for PCB Mount

$2.13 Price drop reminder
  • Brand: Elecbee
  • SKU: EB-005-0034
  • Availability: In Stock
  • Price Gradient
  • Price
  • 10+
  • $1.96
  • 30+
  • $1.81
  • 50+
  • $1.70
  • 100+
  • $1.60
  • 200+
  • $1.49
  • Ask for price for larger quantity
- +
Total Price: $2.13
Buy Now

Ask a Question About This Product

Your Name*
Your Email*
Topic*
Message
SUBMIT

Features:

  • MMCX Connector,Female/Jack,Straight/180°,Offset Type,PCB Mount;
  • Micro-miniature version of MCX with all features of MCX series conenctor.;
  • Snap-on Interface ideal for quick Installation and discount;
  • High cost-effective with excellent boardband performance and low reflections.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of MMCX Connectors:

Consumer Electronic: Smart phones GPS and wireless antennas,
Aerospace and Defense: GPS
Technology: Technology Devices
Telecommunications: GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Computer connections-LAN/WAN


Techinial Datasheet:

Electrical Characteristics

  • Impedance:50 ohm
  • Frequency Range: 0~6 Ghz
  • VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
  • Dielectric Withstanding Voltage: 500 V rms
  • Working Voltage: 170 V rms
  • Center Contact Resistance ≦ 5.0 mΩ  (Milliohms max.)
  • Outer Contact Resistance  1.0 mΩ  (Milliohms max.)
  • Insultation Resistance ≧ 1000 mΩ

Mechanical Characteristics

  • Coupling: Snap-on/Snap-off
  • Contact Retention: 2.3 lbs min.
  • Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  • Environmental Characteristics: Teflon -65°C ~ +155°C
  • Vibration: MIL-STD-202 Method204
  • Corrosion Resistance: MIL-STD-202 Method 101

Material:

Part Material Finish
Body Brass Gold
Center Contact Pin Brass Gold
Insulator PTFE White
