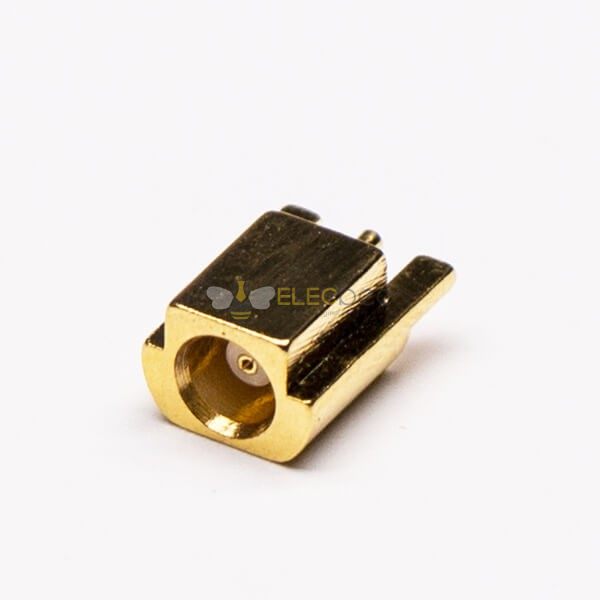

MCX Connector SMT Female Straight for PCB Mount

$1.80 Price drop reminder
  • Brand: Elecbee
  • Product Code: EB-004-0043
  • Availability: In Stock

- +
Total $1.80

Ask a Question About This Product

Your Name*
Your Email*
Topic*
Message
SUBMIT

product features.png

Features:

  • MCX Connector,Female/Jack,Straight/180°,SMT,PCB Mount,Gold Plated;
  • 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
  • Snap-on Interface ideal for quick Installation and discount;
  • High cost-effective with excellent boardband performance and low reflections.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of MCX Connectors:

  • Consumer Electronic: GPS, HDTV, Wireless Internet TV and Audio, smart phone antenna port,
  • Aerospace and Defense: GPS and Hand-held Device
  • Technology: Telemetry
  • Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
  • Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
  • Industrial: Machine to machine communications


Techinial Datasheet:

Electrical Characteristics

  • Impedance:50 ohm
  • Frequency Range: 0-6GHz
  • VSWR: Straight type:1.25 max
  • Dielectric Withstanding Voltage:1000 V rms
  • Working Voltage: <170 V rms
  • Center Contact Resistance:5 mohm
  • Outer Contact Resistance :≦ 2.5 mohm
  • Insultation Resistance:5000 ohms min

Mechanical Characteristics

  • Coupling: Snap-on/Snap-off
  • Contact Retention: 4 lbs min.
  • Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  • Environmental Characteristics: Teflon -65°C ~ +165°C
  • Vibration: MIL-STD-202 Method204
  • Corrosion Resistance: MIL-STD-202 Method 101

Material:

Part Material Finish
Body Brass Au:2u"
Center Contact Pin copper Au:3u"
Insulator Teflon White




connector factory


Where is your products origin? Are they certificated?

Elecbee have long-term cooperation agreements with many OEM factory in China to reduce the intermediate channel cost and help you save money. Our products all made strictly according to the relative global standard, to ensure the products have good compatibility and excellent quality.



What forms of payment do you accept?

Our main payment method include Paypal, Credit Card, Bank Transfer and so on. You could choose anyone at your convenience



When will you arrange shipment?

After confirming receipt of your payment, we will arrange the shipment as soon as possible and upload the courier number to the website for your easy tracking.

Under normal circumstances, the product will be sent out within 48 hours, if the package cannot be send out timely due to special circumstances, we will contact you in advance and inform the specific reasons.



How to exchange or return?

1. You can apply to return within 30 days after receipt of the goods. Please make sure the outside package is intact, and products is in original condition. We will arrange your refund according to the relevant provisions once package received.

2. Return process: You Apply for Return - Approve Return - You Arrange Return - Receive Products and make Inspection - We arrange Refund;

3. We will bear the freight charges for returns caused by us, for instance the quality problem; As to returns caused by the client, customer should be responsible for the shipping fee;

Ask Question About Product

Note: HTML is not translated!
Body Material
Body Material Cooper Alloy
Installation method
Installation methodPCB Mount
Terminal type
Terminal typeSolder Type
Installation characteristics
Installation characteristicsSurface Mount / Offset Type
Gender
GenderFemale
Function
FunctionOther
direction
directionStraight
Polarity
PolarityStandard
Coating
CoatingGold Plating
Impedance
Impedance 50 Ω
Outer conductor connection
Outer conductor connectionWithout
