Elecbee HSD 4+4 Pin Z Code Male Straight Water Blue GPS Signal for PCB Vehicle Connector

SKU: EB-014-0405

Favorites

Key Features

Features and Benefits

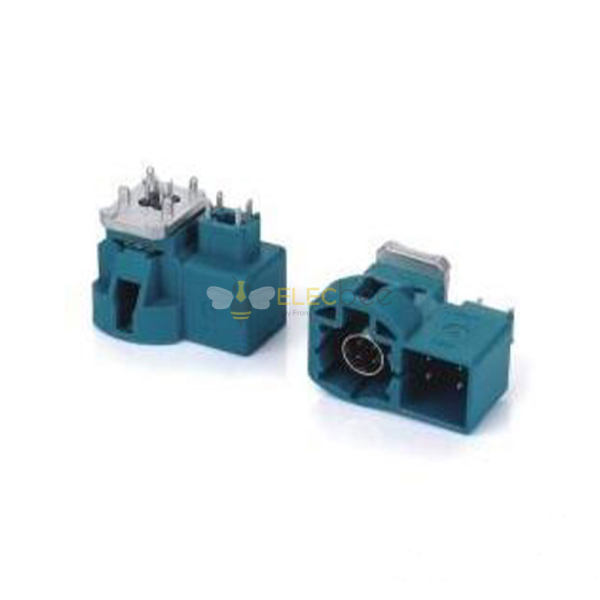

HSD LVDS, 4+4 Pin, 8P, Z Code, Dual Ports, Twin Male Connector, 180 Degrees, Vehicle Connector, for PCB Board
14 different mechanical and color key codes
Robust plastic housing with locking feature and audible clicking noise
Tape and reel packaging for automatic component placement
Sealed units available
Applications include Automotive, Global Positioning Satellite, Satellite Radio, Bluetooth, Remote Vehicle Diagnostic, Infotainment Systems, etc;
Pre-assembled with different RF connectors for choice. Size and cable length can be customized;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, the same quality with a much better price.

Description

HSD Connectors

High-Speed Data (HSD) FAKRA Connectors
The FAKRA (Fachkreis Automobil) series with its High-Speed Data FAKRA connectors. One-pin FAKRA connectors are no longer adequate for applications that require higher data transmission rates. HSD FAKRA four-pin connectors meet those demands with their 100-ohm impedance-controlled system, offering high speeds and top-quality signal transmission. These high-speed connectors are designed to satisfy RF requirements in various telematic and multimedia applications. They provide high-performance, cost-effective RF interfaces to FAKRA and USCAR standards. Their SMB-based design includes multiple color-coded plastic housings to ensure accurate connections, as well as to meet automotive specifications.
Elecbee's HSD FAKRA connectors are ideal for automotive applications and are designed to meet the operational and environmental requirements of Satellite Digital Audio Radio Service (SDARS), Global System for Mobile Communications (GSM), and Global Positioning System (GPS).

Applications

Cameras
Sensors for detection, evaluation, and reaction
High-Performance Computing
Radio antenna
GPS telematics or navigation
Infotainment & television
Mobile communication
RF Bluetooth / WLAN applications
Radio frequency remote control for keyless entry
Vehicle auxiliary heating

HSD Coding

Interface Dimensions

HSD Wiring

Shopping Guide
