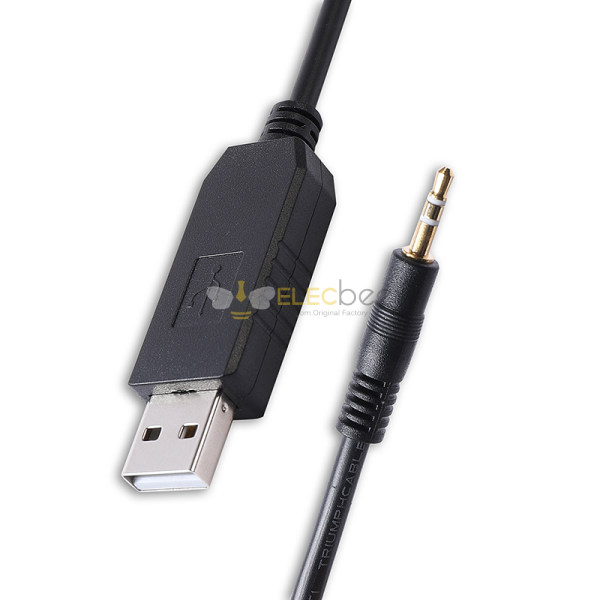

Elecbee PL2303GT USB to RS232 Serial Cable for APC AP9631/AP9630 Network Management Card - 2.5mm TRS Plug, 1M Length

SKU: EB-103-0481

Favorites

Key Features

Features:

High-Performance PL2303GT Controller: Equipped with the PL2303GT USB-to-RS232 bridge controller, this cable features a built-in RS232 transceiver compliant with EIA/TIA-232F standards. It supports up to 1Mbps transmission rate under load, ensuring reliable and fast data transfer for APC AP9631/AP9630 network management cards.
Cross-Platform Compatibility: Comes with royalty-free Virtual Com Port (VCP) drivers for Windows, Mac, Linux, and Android systems. No additional software required—simply plug in and connect, making it ideal for multi-device environments.
USB 2.0 & Multi-Host Support: Fully compliant with USB 2.0 (Full-Speed Mode) and compatible with UHCI/OHCI (USB 1.1), EHCI (USB 2.0), and xHCI (USB 3.1) host controllers. Works seamlessly with modern and legacy systems.
Enhanced Data Throughput: Features a 1024-byte bidirectional FIFO buffer (768-byte receive / 256-byte transmit) to reduce latency and improve data handling efficiency, perfect for high-demand serial communication tasks.
Optimized for APC AP9631/AP9630: Designed with a 2.5mm TRS plug and 1M length, this cable is specifically tailored for APC AP9631/AP9630 network management cards, ensuring precise connectivity and reliable performance in network monitoring and management setups.

Specifications

Show Similar Products >

Description

About PL2303GT

PL2303GT USB to RS232 Serial Bridge Controller With Built-in RS232 Transceiver

USB Interface
-Single-chip USB to RS232 asynchronous serial data transfer interface.
-Fully Compliant with USB 2.0 specification (Full-Speed Mode).
-UHCI/OHCI (USB 1.1), EHCI (USB 2.0), xHCI (USB 3.1) Host Controller Compatible.
-Royalty-free USB to Virtual Com Port (VCP) drivers for Windows, Mac, Linux, and Android.
-Highly integrated USB 1.1 FS Transceiver. Integrated termination resistors and pull-up resistor to reduce PCB external components.
-Supports OTPROM (One-Time Programmable ROM) for USB device descriptors configuration. OTPROM can be programmed directly through USB port.
-Each IC has unique ID (for Serial Number).
-Supports bus-power, self-power and high-power USB device configuration.
-Supports Windows USB Selective Suspend (Remote Wakeup enabled).
-Supports 3.3V VBUS voltage operation

UART Interface (RS232)
-Built-in RS232 Transceiver:
--Meets EIA/-TIA-232F standards with 5.0V power supply
--Guaranteed 1000kbps transmission rate under loading
--Three RS232 Drivers design
--Five RS232 Receivers (always active)
--Latch-up free
-RS232 Serial Port Output Interface:
--Full UART RS232 interface pins (TXD, RXD, RTS, CTS, DTR, DSR, DCD, and RI)
--Flexible baud rate support up to 1Mbps
--5, 6, 7 or 8 data bits
--Odd, Even, Mark, Space, None parity mode
--One, one and a half, or two stop bits
--Hardware and Software Flow Control
--Provides RS232 shutdown indicator pin
-1024-byte bi-directional data FIFO buffers (768-byte receive/256-byte transmit) for faster data throughput.
-Configurable Transmit (TX) and Receive (RX) LED pins using configurable GPIO pins.
