Elecbee Ftdi USB To Rs422 Serial Interface Cable 1M USB-Rs422-We-5000-Bt

SKU: EB-103-0338

Favorites

Key Features

Features:

Black cable and transparent USB connector
Entire USB protocol handled by the electronics in the cable
EIA/TIA-422 communication interface with low power requirements
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parity
Internal EEPROM with user writeable area
Data transfer rates from 300baud to 3Mbaud
Low USB bandwidth consumption
UHCI/OHCI/EHCI host controller compatible
USB 2.0 full speed compatible
ESD protection for RS422 I/O's

Applications:

Communications & Networking, Sensing & Instrumentation, Industrial, Security

Specifications

Show Similar Products >

Description

Product Overview

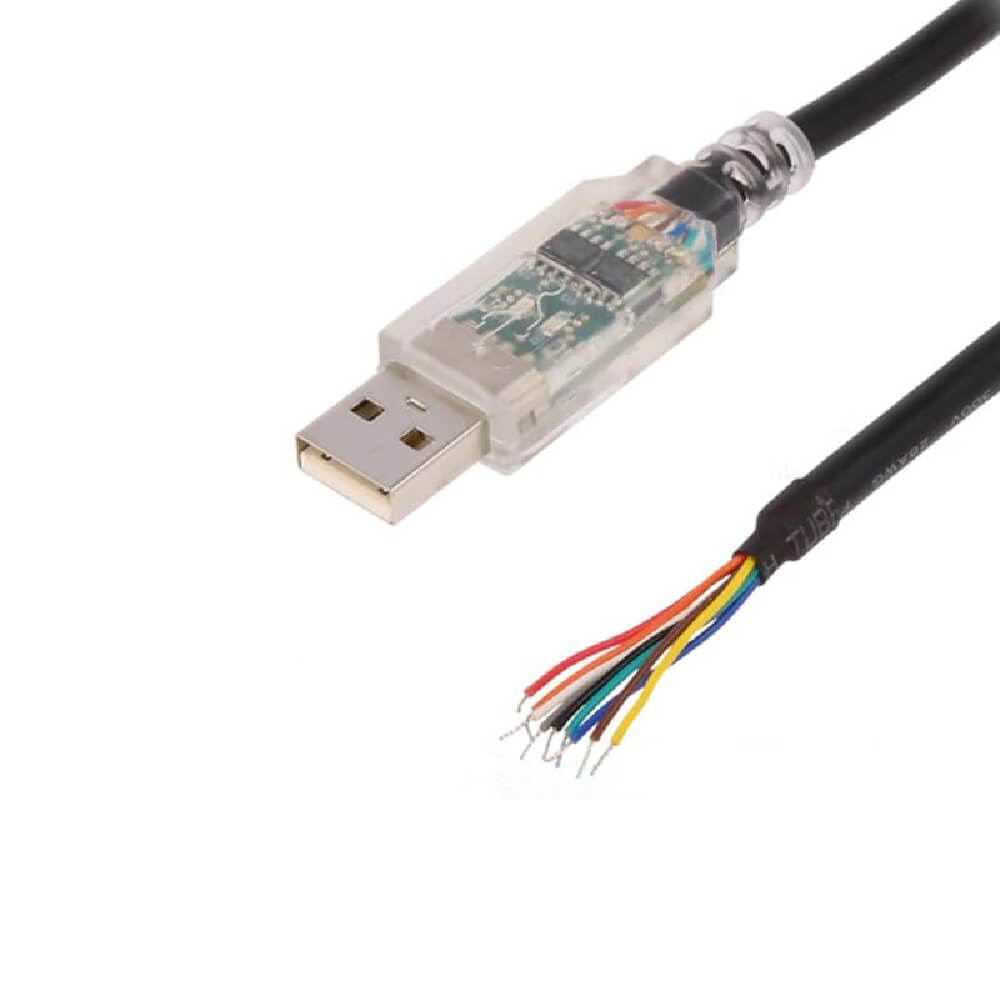

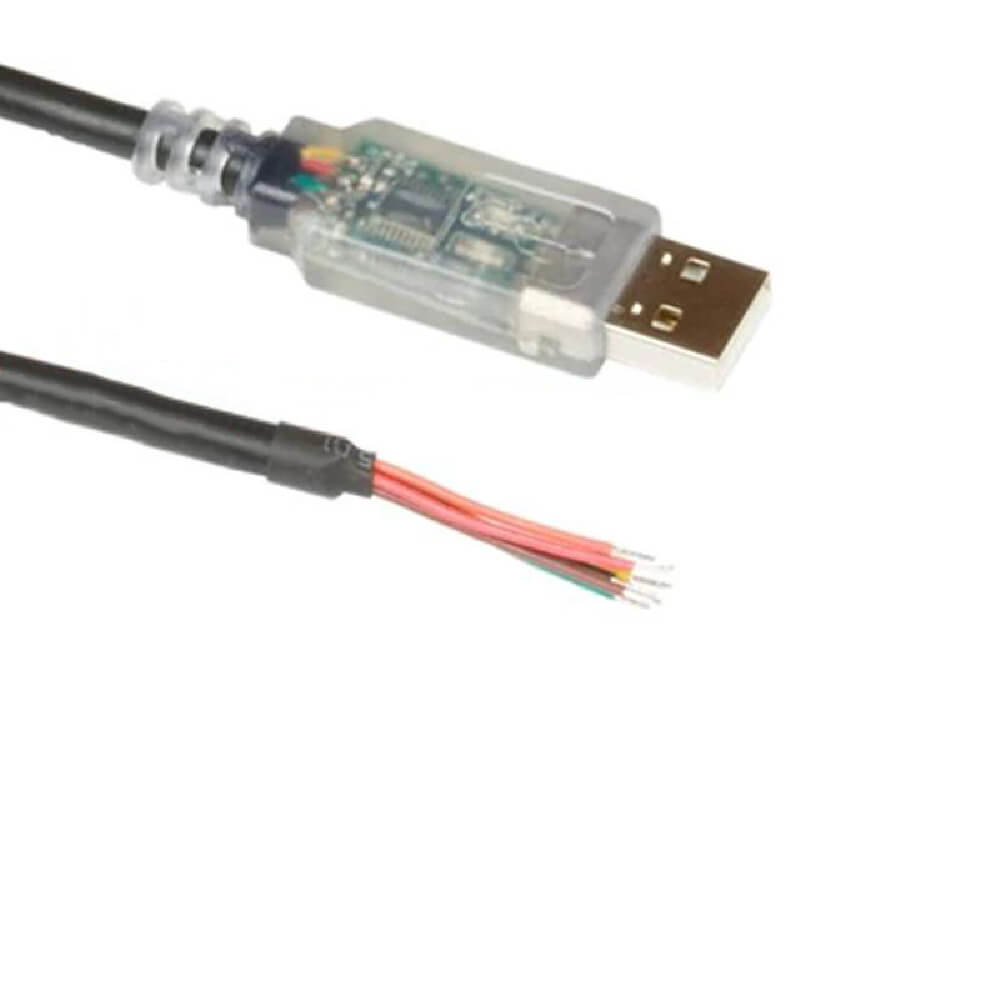

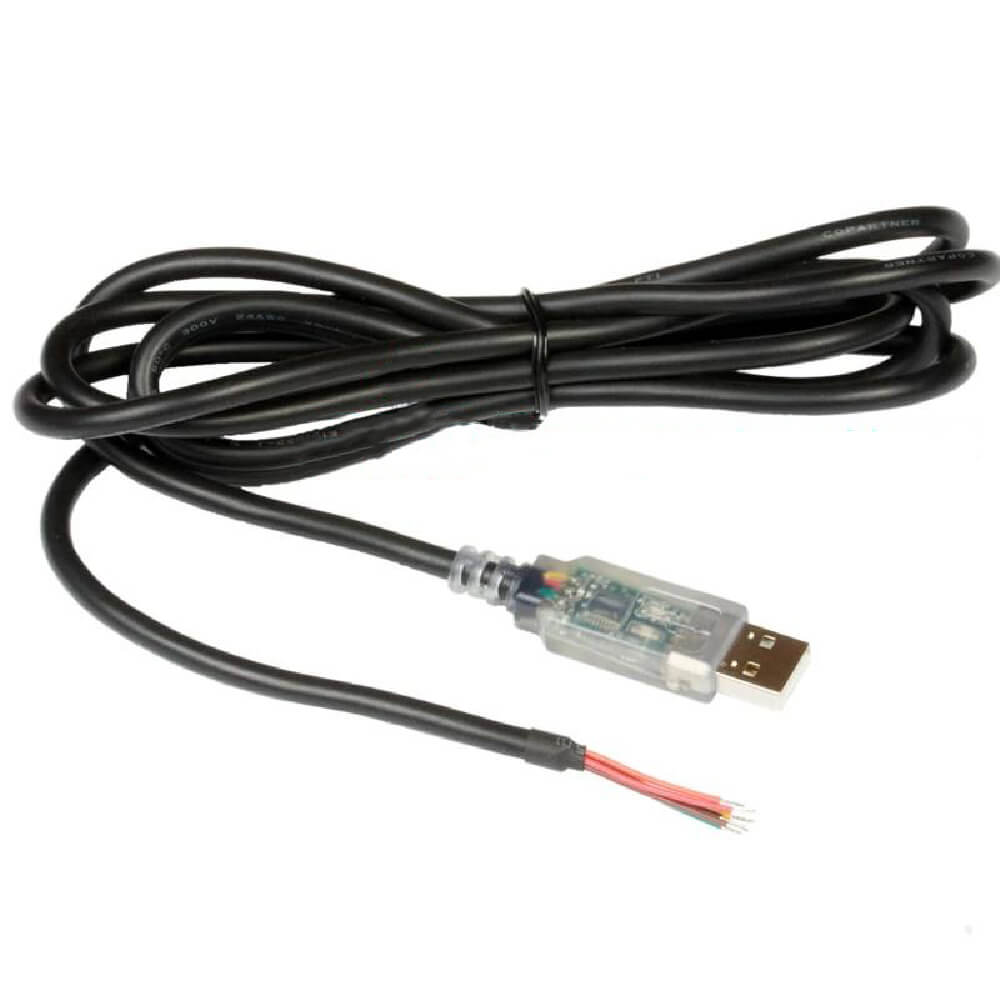

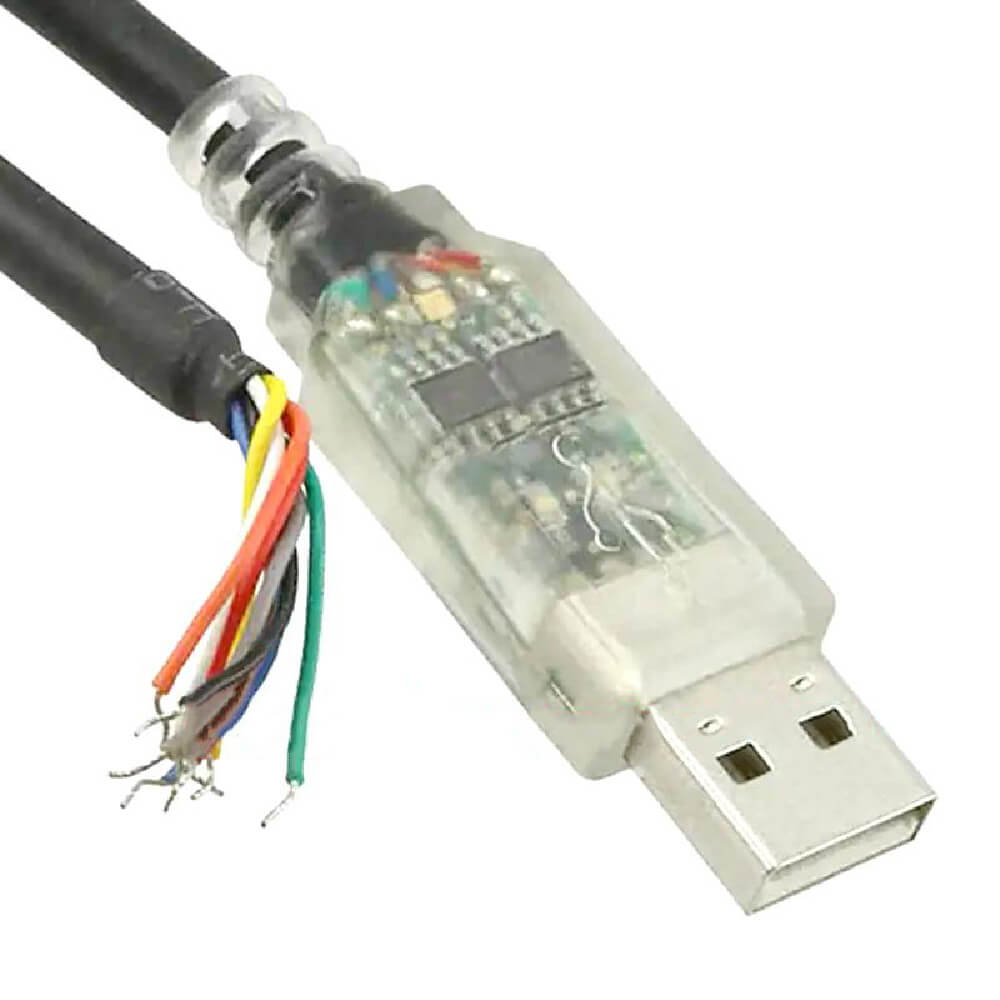

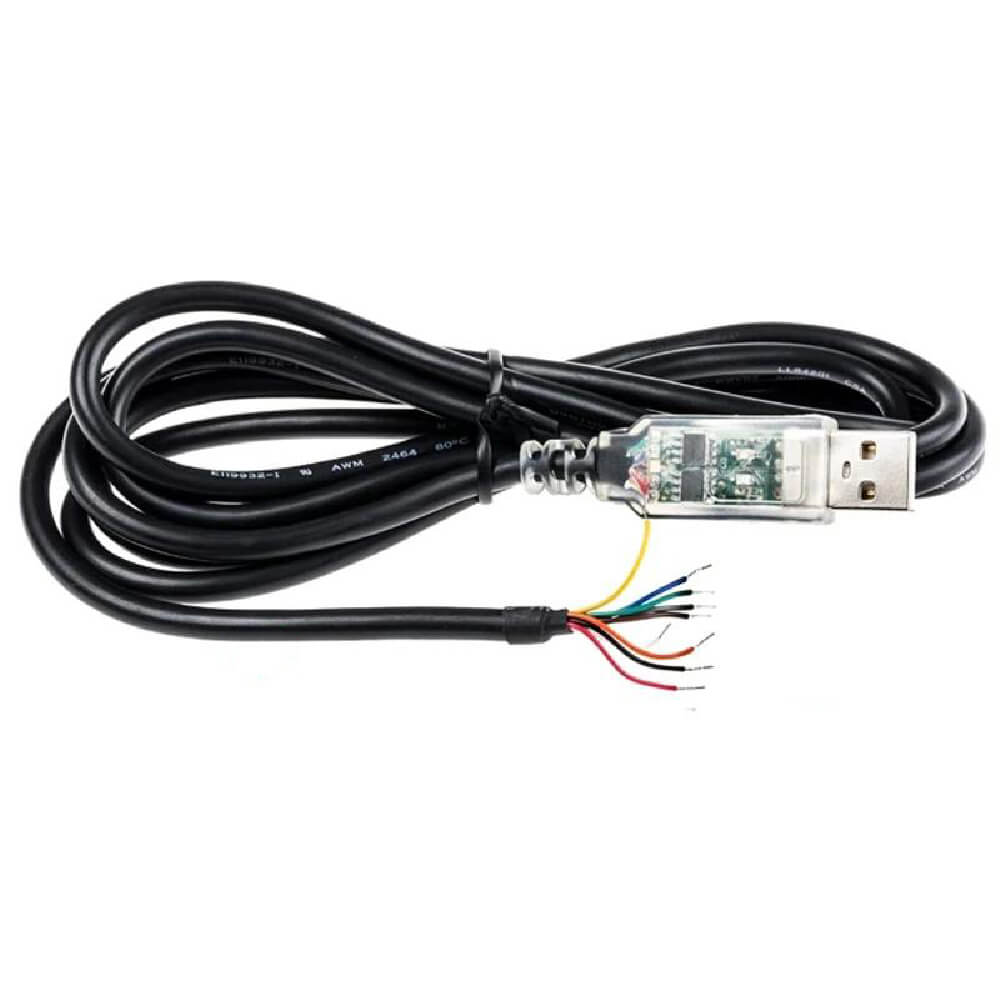

The USB-RS422-WE-5000-BT is an USB to RS422 levels serial UART converter cable with 5m cable length and 0V power supply output. It incorporates FT232RQ USB to serial UART interface IC device which handles all the USB signalling and protocols. The cable provides a fast, simple way to connect devices with a RS422 interface to USB. It also contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The integrated electronics also include the RS422 transceiver plus Tx and Rx LEDs which give a visual indication of traffic on the cable. The other end of the cable is bare, tinned wire ended connections by default. The USB side of the cable is USB powered and USB 2.0 full speed compatible and the cable supports the FTDIChip-ID, with a unique USB serial number programmed into the FT232R. This cables require USB drivers, which are used to make the FT232R in the cable appear as a virtual COM port (VCP).
