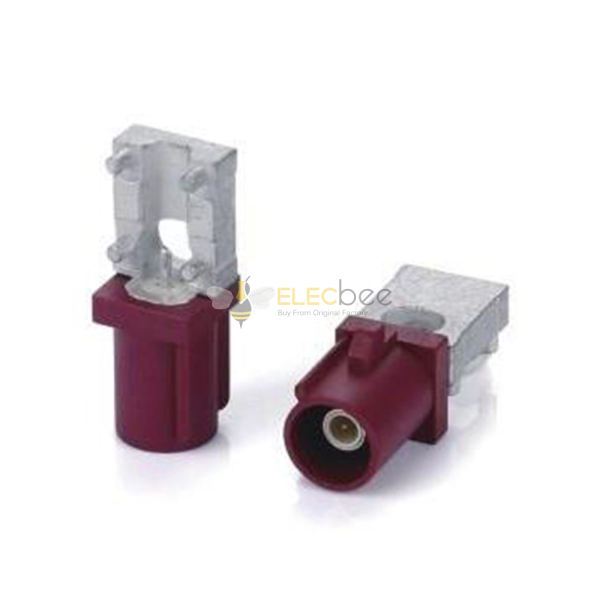

Elecbee D-Coding Fakra Right Angle Male Connector Offset Type SMT Vehicle Claret Violet for PCB

SKU: Fakra-CON-0010

Favorites

Key Features

Features and Benefits

Fakra Connector, Male Connector, Offset Type/SMT, Right Angled, D-Coding
14 different mechanical and color key codes
Robust plastic housing with locking feature and audible clicking noise
Tape and reel packaging for automatic component placement
Sealed units available
Applications include Automotive, Global Positioning Satellite, Satellite Radio, Bluetooth, Remote Vehicle Diagnostic, Infotainment Systems, etc;
Pre-assembled with different RF connectors for choice. Size and cable length can be customized;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, the same quality with a much better price.

Description

FAKRA Connectors

FAKRA connectors(Fachkreis Automobil, a German standard) are SMB-based automotive-grade connectors that can operate up to 6 GHz. These connectors are embedded within a plastic housing with a locking feature with an audible clicking noise that lets you know a connection has been made. They are available in 14 different mechanical layouts which are color coded for easy identification and mismatching prevention.
FAKRA connectors meet the mechanical and environmental requirements of the automotive industry. The worldwide automotive industry has standardized connectors based on the FAKRA and USCAR standards.
They can apply to a variety of connections in automotive vehicles, with applications including SDARS, cellular telephony, GPS navigation, keyless entry, and satellite radio.

Applications

Cameras
Sensors for detection, evaluation, and reaction
High-Performance Computing
Radio antenna
GPS telematics or navigation
Infotainment & television
Mobile communication
RF Bluetooth / WLAN applications
Radio frequency remote control for keyless entry
Vehicle auxiliary heating

Fakra Close-up View

1. Mounting groove for cable connectors for chassis mounting
2. Secure the primary locking system between the plug and coupler with tactile and audible locking
3. Protection bars and protective strips prevent unintentional opening of the primary latching arm
4. Protection of the coaxial insert by shock and vibration-resistant coded housing
5. Secure secondary locking with high axial retention force of the coaxial insert in the plastic housing
6. Sophisticated mechanical and color-coding system with 14 different codes

Fakra Code

Interface Dimensions
