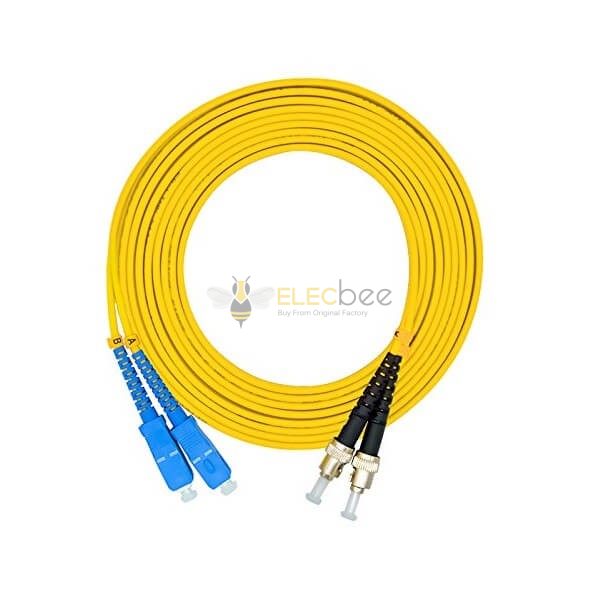

Fiber Jumper Cable Manufactures 3Meter SC to ST Duplex 9/125μm OS2 Single-mode Jumper Optical Patch Cord

$9.89 Price drop reminder
  • Brand: Elecbee
  • Product Code: EB-202-1019
  • Availability: In Stock

- +
Total $9.89

Ask a Question About This Product

Your Name*
Your Email*
Topic*
Message
SUBMIT

product features.png

Features:

  • OS2,Duplex,SC UPC,ST UPC,PVC(Riser/OFNR)/LSZH,2.0mm
  • Low insertion loss and back reflection loss;
  • High quality zirconia ferrules;
  • Good repeatability and interchange;
  • Flame-retardant, rugged and durable jacket;
  • Standard connectors LC, SC, ST, FC, LSH, MTRJ, MU are available;
  • Singlemode (OS2) and multimode (OM1, OM2, OM3, OM4, OM5) are available.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Appliance:

  • Data Center
  • Enterprise
  • Fiber to the X (FTTX)
  • Local Area Network and Wide Area Network (LAN and WAN)
  • Community Antenna Television Network (CATV Network)
  • Telecommunications Network


Physical Characteristics

  • Connector Types End A:  LC/SC/ST/FC
  • Connector Types End B:  LC/SC/ST/FC
  • Polish Type: SMF: UPC-UPC; UPC-APC; APC-UPC; APC-APC;  MMF: UPC-UPC
  • Connector Ferrule: Zirconia Ceramic
  • Cable Diameter: 0.9mm/2.0mm/3.0mm Outer Diameter
  • Interchangeability: ≤0.2dB
  • Vibration: ≤0.2dB
  • Minimum Bend Radius: 30mm

Mechanical Characteristics

  • Fiber Type: OS2/OM5/OM4/OM3/OM2/OM1
  • Fiber Count:Simplex/Duplex
  • Cable Jacket: PVC(Riser/OFNR)/LSZH/Plenum(OFNP)
  • Jacket Color: OM1/OM2: Orange; OM3/OM4: Aqua; OM5: Lime Green; OS2: Yellow
  • Fiber Grade: SMF: G.652.D; MMF: G.651
  • These characteristics are typical and may not apply to all cables.

Environmental Characteristics

  • Operating Temperature: OS2/OM4/OM3/OM2/OM1: -40~75℃; OM5: -60~85℃
  • Storage Temperature Range:-45° to +85° C


connector factory


Where is your products origin? Are they certificated?

Elecbee have long-term cooperation agreements with many OEM factory in China to reduce the intermediate channel cost and help you save money. Our products all made strictly according to the relative global standard, to ensure the products have good compatibility and excellent quality.



What forms of payment do you accept?

Our main payment method include Paypal, Credit Card, Bank Transfer and so on. You could choose anyone at your convenience



When will you arrange shipment?

After confirming receipt of your payment, we will arrange the shipment as soon as possible and upload the courier number to the website for your easy tracking.

Under normal circumstances, the product will be sent out within 48 hours, if the package cannot be send out timely due to special circumstanceswe will contact you in advance and inform the specific reasons.



How to exchange or return?

1. You can apply to return within 30 days after receipt of the goods. Please make sure the outside package is intact, and products is in original condition. We will arrange your refund according to the relevant provisions once package received.

2. Return process: You Apply for Return - Approve Return You Arrange Return - Receive Products and make Inspection - We arrange Refund;

3. We will bear the freight charges for returns caused by us, for instance the quality problem; As to returns caused by the client, customer should be responsible for the shipping fee;

Ask Question About Product

Note: HTML is not translated!
Connector A Type
Connector A TypeSC
Connector B Type
Connector B TypeST
Optical fiber core
Optical fiber coreDuplex
Polishing type
Polishing typeUPC
Jacket Material
Jacket MaterialPVC(Riser/OFNR)
Cable outer diameter
Cable outer diameter2.0mm
