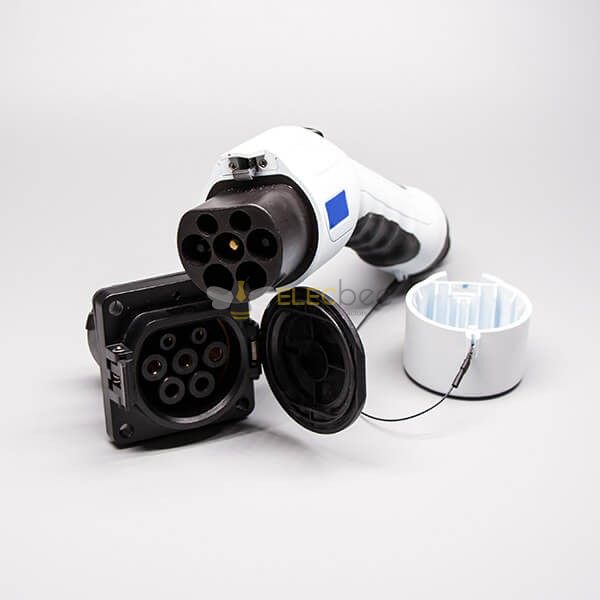

Electric Vehicle Charging Interface GB/T20234.2-2015 Chinese Standard Charging Plug And Socket AC 16A 32A EV Connector

$320.00 Price drop reminder
  • Brand: Elecbee
  • Product Code: EB-402-0001
  • Availability: In Stock

- +
Total $320.00

Ask a Question About This Product

Your Name*
Your Email*
Topic*
Message
SUBMIT

product features.png

Features:

  • EV charger , Electric Vehicle Charging, GB/T20234.2 standard, AC 16A 32A
  • Products complies with GB/T20234-2011 standard;
  • Various types for choice, include DC charging connector (125A, 250A current rating), AC charging connector (Vehicle side, power supply side,16A,32A current rating).
  • Humanized design with a good grasp feel, easy to use.
  • Various accessories available, protection cap include damping cap, metal string cap,etc.
  • The plug and socket termination type is wire crimping.
  • Degree of protection: IP55
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Usage:

Used for connection between the high voltage cables inside the electric vehicle.

Application :

For high-voltage connection of car charger, high voltage distribution box, motor controller, air conditioning, PTC, battery, etc. Can also be used for short circuit control.


Techinial Datasheet:

Electrical Characteristics

  • Rating current and contact resistance:

  • Rating voltage:250/440V AC, 750V DC
  • Insulation resistance: ≥1000MΩ( AC charging connector);

Mechanical Characteristics

  • Durability: exceed 10,000 times (Non-charged state)

Main Technical Specification

Material:
——Shell: Thermoplastics
——Insulator: Thermoplastic
——Sealing ring: rubber material
——Insulator flame retardant grade: UL94-V0
——Contact: copper alloy, power contact with gold-plated, signal contact with gold-plated
Environmental Performance:
——Operating temperature:-30℃~+50℃
——Relative humidity : 98% at40℃
——Degree of protection: IP55 (during charging)
