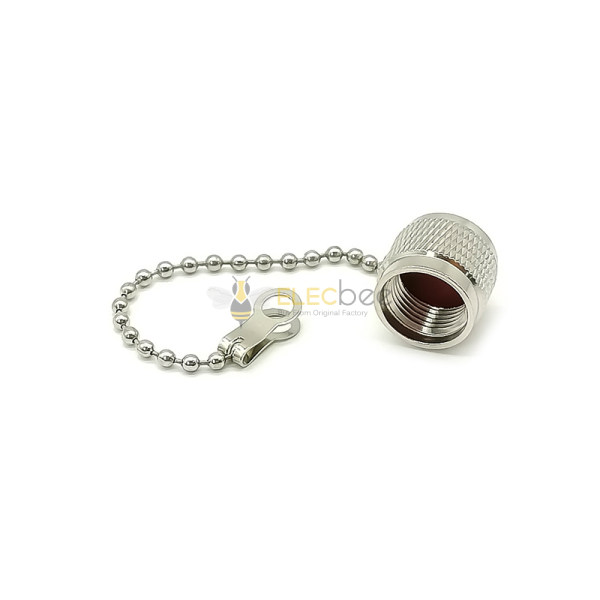

Elecbee TNC Connector Dust Cap Male Straight with Chain

SKU: EB-002-0121

Favorites

Key Features

Features:

TNC,Male,Straight,Standard
Great performance with DC to 11GHz Frequency and 50 ohm impedance;
Threaded coupling mechanism ensure durability and stability for vibration application;
Medium size used in military, industry or consumption electronic area, etc;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of N Connectors:

Aerospace and Defense: Radar Equipment
Technology: Ablation equipment
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Antennas, Base Stations, Passive/Active Base Station Components, Telecommunication hardware
Data/Communications: Broadcast Electronics, Wifi
Industrial: Machine to Machine Communications

Electrical Characteristics

Impedance：50 ohm
Frequency Range: 0~13 Ghz
VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
Dielectric Withstanding Voltage: 2500 V rms
Working Voltage: 1000 V rms
Center Contact Resistance ≦ 1.0 mΩ (Milliohms max.)
Outer Contact Resistance ≦ 0.2 mΩ (Milliohms max.)
Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

Mechanical Characteristics

Coupling: 5/8-24 thread
Contact Retention: 6 lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

Temprature Range: -65°C ~ +125°C ( PE Cable-40°C ~ +85°C )
Vibration: MIL-STD-202 Method204
Corrosion resistance: MIL-STD-202 Method 101

Material:

Part	Material	Finish
Body	Brass	Nickel Plating
Chain	Brass	Nickel Plating
