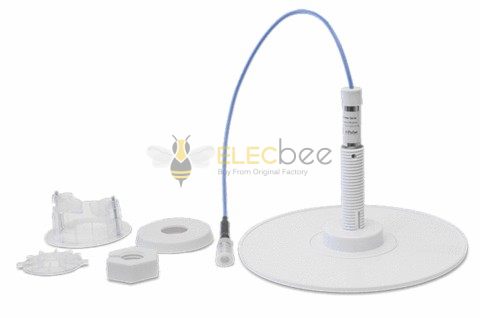

Elecbee Thinnest Flat Ceiling Dome Antenna (50 Ohm) | weBoost 314407

SKU: E-201-2500

Favorites

Key Features

Features:

Works on all worldwide cellular bands for voice and 4G data: LTE/ CDMA/ GSM/ UMTS/ AWS.
High gain signal output.
Covers cellular bands and WiFi from 608 through 2700 MHZ.
Boosts voice and data - 4G, LTE, 3G.
Ceiling-Mount.
Easy install at home or office.
Connects to building cell phone signal boosters and modems.
2 year warranty.
Ultra-thin.
White radome.
RoHS Compliant.
N-female connector.
Plenum Rated pig-tail cable.
High efficiency and compact design.

Technical Specifications.

Model Number	314407.
Frequency band (MHz)	608-960 / 1695-2200 / 2300-2700.
Nominal Impedance	50 Ohm.
VSWR (698-960 MHz)	2:1.
VSWR (1695-2200 MHz)	2:1.
Average Peak Gain (608-960 MHz)	4 dBi.
Average Peak Gain (1695-2200 MHz)	6 dBi.
Average Peak Gain (2300-2700 MHz)	6 dBi.
Efficiency (608-960 MHz)	70%.
Efficiency (1695-2200 MHz)	65%.
Efficiency (2300-2700 MHz)	60%.
Horizantal Plane (th=45deg)	Omni.
HPBW Vertical Plane (608-960 MHz)	100 degrees Typ.
HPBW Vertical Plane (1695-2200 MHz)	130 degrees Typ.
HPBW Vertical Plane (2300-2700 MHz)	130 degrees Typ.
Maximum Power Input	40 W.
Cable Type	Diameter 0.16 inches low Loss, Plenum Rated.
Cable Length	10 in. / 254 mm.
Connector Type	N-Female.
RoHS	Compliant.
Engineering by	Pulse-Larsen Antennas.
Weight	2.04 lbs.
UPC	811815028086

Ant. Radiation Patterns without Reflector 608-960 MHz:

Antenna Radiation Patterns without Reflector 1695-2200 MHz:

Antenna Radiation Patterns without Reflector 2300-2700 MHz:

Description

Ceiling Mount Circular Thin Antenna (50 Ohm) | weBoost 314407 by Wilson Electronics / WilsonPro.

Thinnest Flat Ceiling Dome Antenna is made by weBoost's parent company, Wilson Electronics (Wilson Pro). Model number weBoost 314407. This 4G antenna has 50 Ohm impedance and N-Female connector with 10 inches low loss plenum pigtail cable. It is known for its ultra thin compact design, indoor aesthetic elegance, and high performing operation. It is the thinnest, slimmest dome antenna available.

This is indoor ceiling mount broadcast antenna. It covers all cellular frequencies on platforms 2G + 3G + 4G + LTE. This multi-directional in-building antenna is ceiling mounted and installed in central location for coverage all around. Ultra-thin structure of ant. allows installation in places where aesthetics are important. White color of antenna makes this product easily camouflaged on the ceiling.

It works on all available cellular signal bands. This antenna is the same one that is already included in several commercial grade WilsonPro cell phone signal booster kits. It can be used as a replacement or can also be used on other Wilson amplifiers or boosters made by other brand manufacturers that require 50 Ohm impedance for its interior antenna port. Purchase includes all mounting parts and accessories.
