Elecbee Wall Mount Panel LTE Antenna (50 Ohm) | weBoost 311135

SKU: E-201-2495

Favorites

Key Features

Description

Product Description

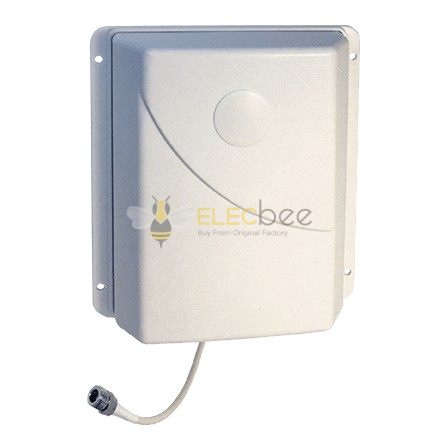

Wall Mount Panel Antenna (50 Ohm) | weBoost 311135 by Wilson Electronics / WilsonPro.

Wall mount Panel LTE antenna for indoor use. It covers all cellular frequencies on platforms 2G + 3G + 4G + LTE. This uni-directional in-building antenna is wall mounted and installed in long rectangular rooms or hallways and corridors for coverage in one direction over long distances.

It is made by weBoost's parent company, Wilson Electronics. Model number is 311135. It has 50 Ohm impedance. It is vertically polarized. It is known for its compact design, indoor aesthetic elegance, and high performing operation.

Its dimensions are: 8 inches by 7 inches by 2 inches. It is white color. It has attached 9 inches pigtail coax cable with N-Female connector. It works on all available cellular signal bands. This antenna is the same one that is already included in several weBoost cell phone signal booster kits including weBoost Connect 4G-X (471104).

It can be used as a replacement or can also be used on other Wilson amplifiers or boosters made by other brand manufacturers that require 50 Ohm impedance for its interior antenna port. Purchase includes all mounting parts and accessories.

Works on all worldwide cellular bands for voice and 4G data: LTE/ CDMA/ GSM/ UMTS/ AWS.
High gain signal output.
Boost 700-2170 MHz cellular frequencies.
Boosts voice and data - 4G LTE/3G.
Wall-Mount.
Easy install at home or office.
Connects to building cell phone signal boosters and modems.
2 year warranty.

Technical Specifications.

Model Number	311135.
Frequency & Gain	700-800 MHz = 5.2 dB; 824-894 MHz = 4.4 dB; 880-960 MHz = 4.2 dB; 1710-1880 MHz = 10.1 dB; 1850-1990 MHz = 10.6 dB; 2110-2170 MHz = 8.2 dB.
Impedance	50 ohms.
Maximum Power	50 watts.
Polarization	Vertical.
Connectors	N-Female.
Dimensions	8.27 x 7.09 x 1.73 inches.
VSWR	1.5:1.
Beamwidth Horizontal Plane	70 degrees / 60 degrees.
Beamwidth Vertical Plane	50 degrees / 45 degrees.
Ground Plane	Built-in Ground Plane.
UPC	811815023555
