Elecbee Dome Ceiling Mount LTE Antenna (50 Ohm) | weBoost 304412

SKU: E-201-2493

Favorites

Key Features

Description

Product Description

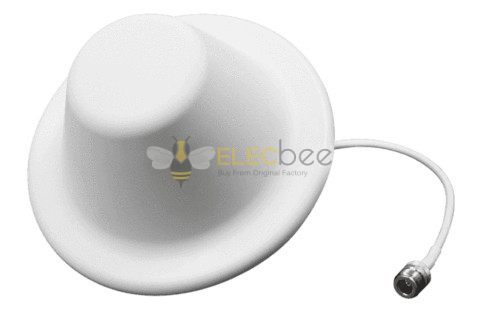

Dome Antenna (50 Ohm) | weBoost 304412 by Wilson Electronics / WilsonPro.

Dome ceiling mount LTE antenna for indoor use. It covers all cellular frequencies on platforms 2G + 3G + 4G + LTE. This multi-directional in-building antenna is ceiling mounted and installed in central location for coverage all around.

It is made by weBoost's parent company, Wilson Electronics. Model number is 304412. It has 50 Ohm impedance and N-Female connector with 12 inches or 1 ft. pigtail cable. It is known for its compact design, indoor aesthetic elegance, and high performing operation.

It works on all available cellular signal bands. This antenna is the same one that is already included in several weBoost cell phone signal booster kits.

It can be used as a replacement or can also be used on other Wilson amplifiers or boosters made by other brand manufacturers that require 50 Ohm impedance for its interior antenna port. Purchase includes all mounting parts and accessories.

Works on all worldwide cellular bands for voice and 4G data: LTE/ CDMA/ GSM/ UMTS/ AWS.
High gain signal output.
Boost 698-960 & 1710-2700 MHz cellular frequencies.
Boosts voice and data - 4G LTE/3G.
Ceiling-Mount.
Easy install at home or office.
Connects to building cell phone signal boosters and modems.
2 year warranty.

Technical Specifications.

Check specs. to confirm this 50 Ohm Dome antenna is comparable, or better than any brand in the market including SureCall, RSRF, HiBoost, Cel-Fi, etc.

Model Number	304412.
Frequency range (MHz)	698-960 / 1710-2700.
Polarization	Vertical.
Gain (dBi)	2 / 4.
Horizontal Beamwidth (Degrees)	360.
Vertical Beamwidth (Degrees)	60.
Impedance (Ohm)	50.
VSWR	< 2.
Maximum input power (W)	50.
Lightning Protection	DC Ground.
Connector	N-female.
Dimensions (in / mm) (diameter x height)	7.3 x 3.3 / 185 x 85.
Weight (lb / kg)	.63 / 0.28.
Cable Length (in./mm.)	11.9 / 300.
Radome material	ABS.
Color	White.
Operating temperature (Degrees C / F)	-40 to + 149 / -40 to +65.
RoHS	Compliant.
UPC	811815026624
