Elecbee Wide Band Directional External LTE Antenna (75 Ohm) | weBoost 314475

SKU: E-201-2485

Favorites

Key Features

Description

Product Description

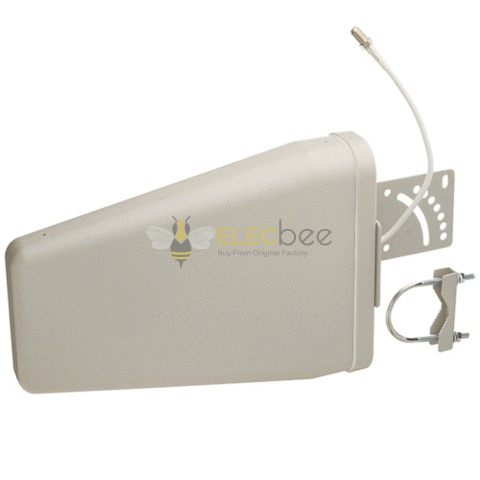

Yagi / LPDA Directional Antenna (75 Ohm) | weBoost 314475 by Wilson Electronics / WilsonPro.

Wide Band Directional External LTE Antenna covers all cellular frequencies on platforms 2G + 3G + 4G + LTE. This Directional Building Antenna is Log Periodic Antenna (A.K.A. Yagi). It is made by weBoost's parent company, Wilson Electronics. Model number is 314475. It has 75 Ohm impedance and F-Female connector. It is known for its compact design, high performance, and all-weather operation.

It works on all available cellular signal bands. This antenna is the same one that is already included in cell phone signal booster kits, weBoost Connect 4G (470103) and weBoost Canada Connect 4G (470103F). It is also included in weBoost Connect RV 65 (471203) and Canadian weBoost Connect RV65 (471203F).

It can be used as a replacement or can also be used on other Wilson amplifiers or boosters made by other brand manufacturers that require 75 Ohm impedance for its exterior antenna port. Purchase includes all mounting parts and accessories.

Works on all worldwide cellular bands for voice and 4G data: LTE/ CDMA/ GSM/ UMTS/ AWS.
High performance for weBoost cellular repeater/ booster: 8 to 10 dBi broadband.
Designed for building exterior installation; direct at cell tower for best signal.
High efficiency and compact design.
UV stable white sealed radome.
Rugged and waterproof for all weather operation.
Simple install kit with tilt/ swivel mast bracket for 1.25 inch to 2 inches diameter pipe/ mast.
2-year warranty.

Technical Specifications.

Check specs. to confirm this 75 Ohm Yagi antenna is comparable, or better than any brand in the market including SureCall, RSRF, HiBoost, Cel-Fi, etc.

Model Number	314475.
Frequency Band (MHz)	698-814, 814-960, 1695-2180, 2180-2700.
Max Gain (dBi)	7.48, 7.31, 8.83, 8.57.
Average Beamwidth Gain (dBi)	5.2, 5.1, 6.7, 6.5.
Horizontal Beamwidth (Degrees)	78, 76, 75, 75.
VSWR	<1.8:1, <1.7:1, <1.8:1, <1.1:1.
Polarization	Vertical / Horizantal.
Half-Power Beam width (Degrees)	Low Band: 65 Vert. 100-109 Horiz.
Half-Power Beam width (Degrees)	High Band: 55 Vert. 70-85 Horiz.
Front-To-Back Ratio (dB)	≥10 Average.
Impedance (Ohm)	75.
Max Power	100 Watts.
Connector	F-female.
Fits	75 Ohm cables with F-Male connector such as Type RG-6 cable with F Male connectors or Type RG-11 cable with F Male connectors
Antenna Dimensions	11.75 x 8.5 x 2.50 inches.
Brackets	Max OD 2 inches.
Mount Type	Mounts on pipe 1.25 to 2 inches in diameter.
Antenna Shipping Dimensions	13.5 x 8.25 x 3.25 inches.
Weight	1.8 lbs.
Weight with included mount	3.31 lbs.
Wind Loading Area (sq. ft.)	≥2.13.
Rated Wind Velocity (mph)	1.5-2.0.
Radiator Material	Aluminum.
Radome Material	ABS Anti UV.
Water Resistance	IPX Weather Rated..
Operating Temperature (Degrees Fahrenheit)	-40 to +131.
UPC	811815022558
