Elecbee External Wide Band Directional Antenna (50 Ohm) | weBoost 314411

SKU: E-201-2484

Favorites

Key Features

Description

Product Description

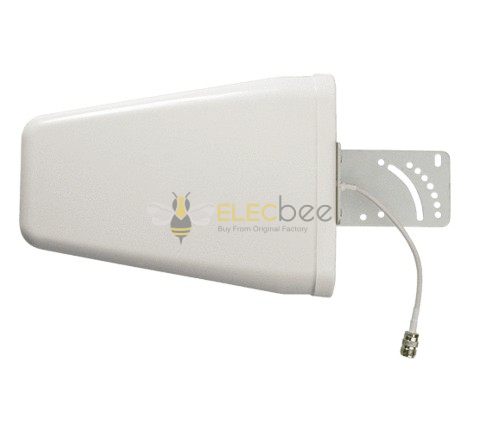

LPDA / Yagi Directional Antenna (50 Ohm) | weBoost 314411 by Wilson Electronics / WilsonPro.

External Wide Band 3G + 4G + LTE Directional Building Antenna is Log Periodic Antenna (A.K.A. Yagi) made by Wilson Electronics' weBoost (model: 314411). It has 50 Ohm impedance and N-Female pigtail connector. It is known for its compact design, high performance, and all-weather operation.

It works on all available cellular signal bands. This antenna is the same one that is already included in cell phone signal booster kits, weBoost Connect 4G-X (471104) and weBoost Canada Connect 4GX (471104F). It can be used as a replacement or can also be used on other Wilson amplifiers or boosters made by other brand manufacturers.

Works on all worldwide cellular bands for voice and 4G data: LTE/ CDMA/ GSM/ UMTS/ AWS.
High performance for weBoost cellular repeater/boosters.
Designed for building exterior installation; direct at cell tower for best signal.
High efficiency and compact design.
UV stable white sealed radome.
Rugged and waterproof for all weather operation.
Simple install kit with tilt/swivel mast bracket for 1.25 inch to 2 inches diameter pipe/ mast.
2-year warranty.

Technical Specifications.

Check specs. to confirm this 50 Ohm Yagi antenna is comparable, or better than any brand in the market including SureCall, RSRF, HiBoost, Cel-Fi, etc.

Model Number	314411.
Frequency Band (MHz)	698-814, 814-960, 1695-2180, 2180-2700.
Max Gain (dBi)	7.48, 7.31, 8.83, 8.57.
Average Beamwidth Gain (dBi)	5.2, 5.1, 6.7, 6.5.
Horizontal Beamwidth (Degrees)	78, 76, 75, 75.
VSWR	<1.8:1, <1.7:1, <1.8:1, <1.1:1.
Polarization	Vertical / Horizantal.
Half-Power Beam width (Degrees)	Low Band: 65 Vert. 100-109 Horiz.
Half-Power Beam width (Degrees)	High Band: 55 Vert. 70-85 Horiz.
Front-To-Back Ratio (dB)	≥10 Average.
Impedance (Ohm)	50.
Max Power	100 Watts.
Connector	N-female.
Antenna Dimensions	11.75 x 8.5 x 2.50 inches.
Brackets	Max OD 2 inches.
Mount Type	Mounts on pipe 1.25 to 2 inches in diameter.
Antenna Shipping Dimensions	13.5 x 8.25 x 3.25 inches.
Weight	1.8 lbs.
Weight with included mount	3.31 lbs.
Wind Loading Area (sq. ft.)	≥2.13.
Rated Wind Velocity (mph)	1.5-2.0.
Radiator Material	Aluminum.
Radome Material	ABS Anti UV.
Water Resistance	IPX Weather Rated..
Operating Temperature (Degrees Fahrenheit)	-40 to +131.
UPC	811815023548
