Elecbee Modul MiniPCIe I/O PCIe volle Größe 4 x Serielle RS-232 mit Spannungsversorgung

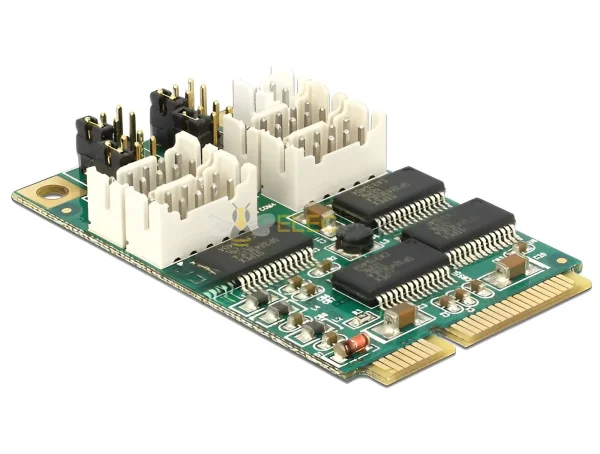

Overview Description This MiniPCIe adapter by Delock expands your system by four additional serial ports, which you can lead out through the slot bracket. You can connect different serial devices like printer, scanner, modem etc. to this adapter. Technical details Connector:   on the module:     4 x 10 pin pin header male   on the slot bracket (standard) 2 x:     2 x serial RS-232 DB9 male with screw nuts   or on the slot bracket (low profile) 4 x:     1 x serial RS-232 DB9 male with screw nuts Chipset: Exar XR17V354 Form factor: MiniPCIe full size Interface: PCI Express version 2.0 Data transfer rate up to 921.6 Kb/s Selectable voltage supply 5 V / 12 V or RI Compatible with 16C550 UART Datenbits: 5, 6, 7, 8 Signals:TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, 5V/12V/RI Operating Temperature: -30 ~ 75℃ Storage Temperature: -40 ~ 85 Cable length: ca. 30 cm (incl. connector) Relative humidity: 0 - 95 % (non condensing) Cable length incl. connectors: ca. 30 cm System requirements Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64/10/10-64/11, Linux Kernel 2.6 Mainboard with a free MiniPCIe slot with a PCIe interface Package content MiniPCIe module 4 x serial connection cable (pin header > DB9) Stromkabel 2 x Standard-Slothalter mit zwei DB9 Ports 4 x flache Slothalterung mit einem DB9 Port Treiber CD Bedienungsanleitung Paket Box
