Elecbee Mini PCIe I/O PCIe volle Größe 4 x Serial RS-232

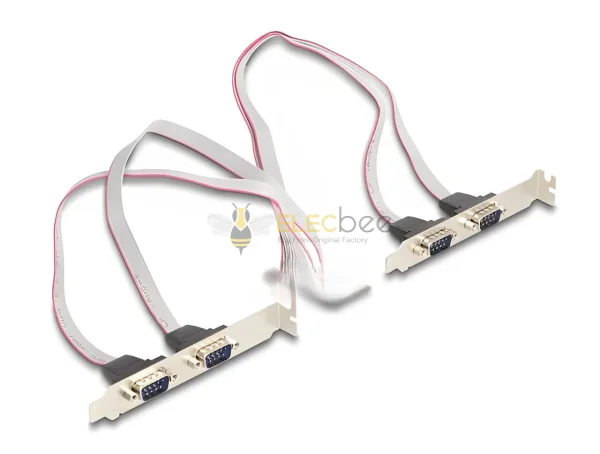

Overview Description This Mini PCIe card by Delock expands your system by four additional RS-232 ports. This allows various serial devices like printer, POS systems and modems to be connected to the computer. Technical details Connectors:   external:   4 x serial D-Sub 9 pin male   internal:   1 x Mini PCI Express, Rev. 1.2   4 x 10 pin pin header Chipset: WCH382L Form factor: Mini PCIe full size Data transfer rate up to 460.8 Kbps FIFO: 4 x 256 byte Databits: 5, 6, 7, 8 Stop bits: 1, 2 Parity: even, odd, none, mark, space Flow control: none, hardware RTS / CTS, software XON / XOFF Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI Cable length incl. connectors: ca. 25 cm Dimensions (LxWxH): ca. 51 x 30 x 10 mm System requirements Windows 10/10-64/11 Windows Server 2022 Motherboard with a free Mini PCIe slot with a PCIe interface Package content Mini PCIe module 4 serial connecting cable 2 x standard bracket 4 x low profile bracket User manual Package Box
