Elecbee Mini PCIe I/O PCIe volle Größe 4 x Serial RS-232, 1 x Parallel

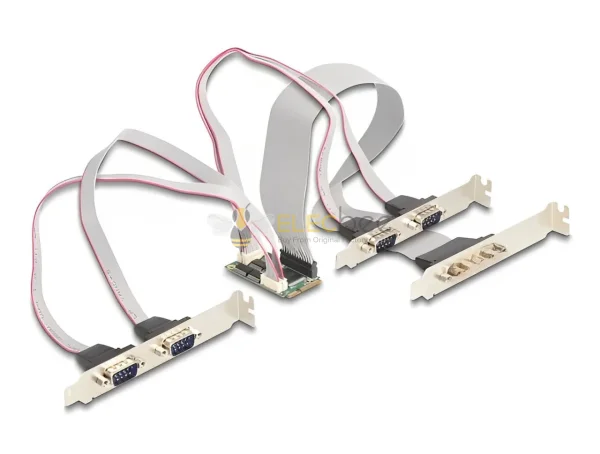

Overview Description The Mini PCIe module by Delock expands your system by four serial and one parallel interface, which you can lead out through the slot bracket. You can connect different serial and parallel devices like printer, scanner, modem etc. to this adapter. Technical details Connectors:   external:   4 x serial D-Sub 9 pin male   1 x parallel D-Sub 25 pin female   internal:   1 x Mini PCI Express, Rev. 1.2   4 x 10 pin pin header   1 x 26 pin pin header Chipset: WCH382L Form factor: Mini PCIe full size Serial specification: Data transfer rate up to 460.8 Kbps FIFO: 4 x 256 byte Databits: 5, 6, 7, 8 Stop bits: 1, 2 Parity: even, odd, none, mark, space Flow control: none, hardware RTS / CTS, software XON / XOFF Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI Parallel specification: Data transfer rate up to 1 Mbps SPP, PS2, EPP, ECP compatible to IEEE 1284 Cable length incl. connectors: ca. 25 cm Dimensions (LxWxH): ca. 51 x 30 x 10 mm System requirements Windows 10/10-64/11 Windows Server 2022 Motherboard with a free Mini PCIe slot with a PCIe interface Package content Mini PCIe module 4 serial connecting cable 1 parallel connecting cable 3 x standard bracket 5 x low profile bracket User manual Package Box
