Comprehensive BNC Connector Guide: Types, Applications & Buying Tips

Learn everything about BNC connectors: types, applications, cable compatibility, and how to choose the right connector for CCTV and RF systems. Get expert buying tips and installation guidance.

1.What is a BNC Connector?

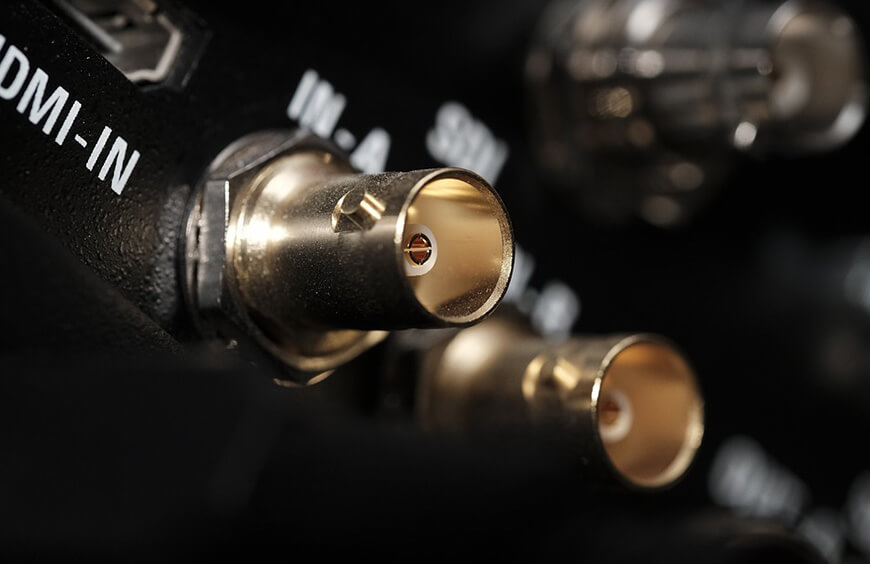

A BNC connector (Bayonet Neill-Concelman) is a type of RF coaxial connector invented by Paul Neill of Bell Labs and engineer Carl Concelman. Designed for 50 Ω or 75 Ω cables, BNC connectors are widely used for video, RF signals, and test equipment. They feature a bayonet-style connection, allowing quick and reliable installation—typically within one rotation—making them ideal for frequent connect/disconnect operations.

2.Types of BNC Connectors and Their Applications

BNC connectors come in various types suited for different coaxial cables such as RG6, RG11, and RG59. Common applications include:
• Analog and serial digital interface video signals (CCTV, broadcast)
• Radio antennas
• Aerospace electronics (Avionics)
• Test and measurement equipment
High-frequency BNC connectors are used for applications up to 4 GHz. Above 4 GHz, slotted outer conductors may cause signal radiation, and connections above 11 GHz may become unstable.

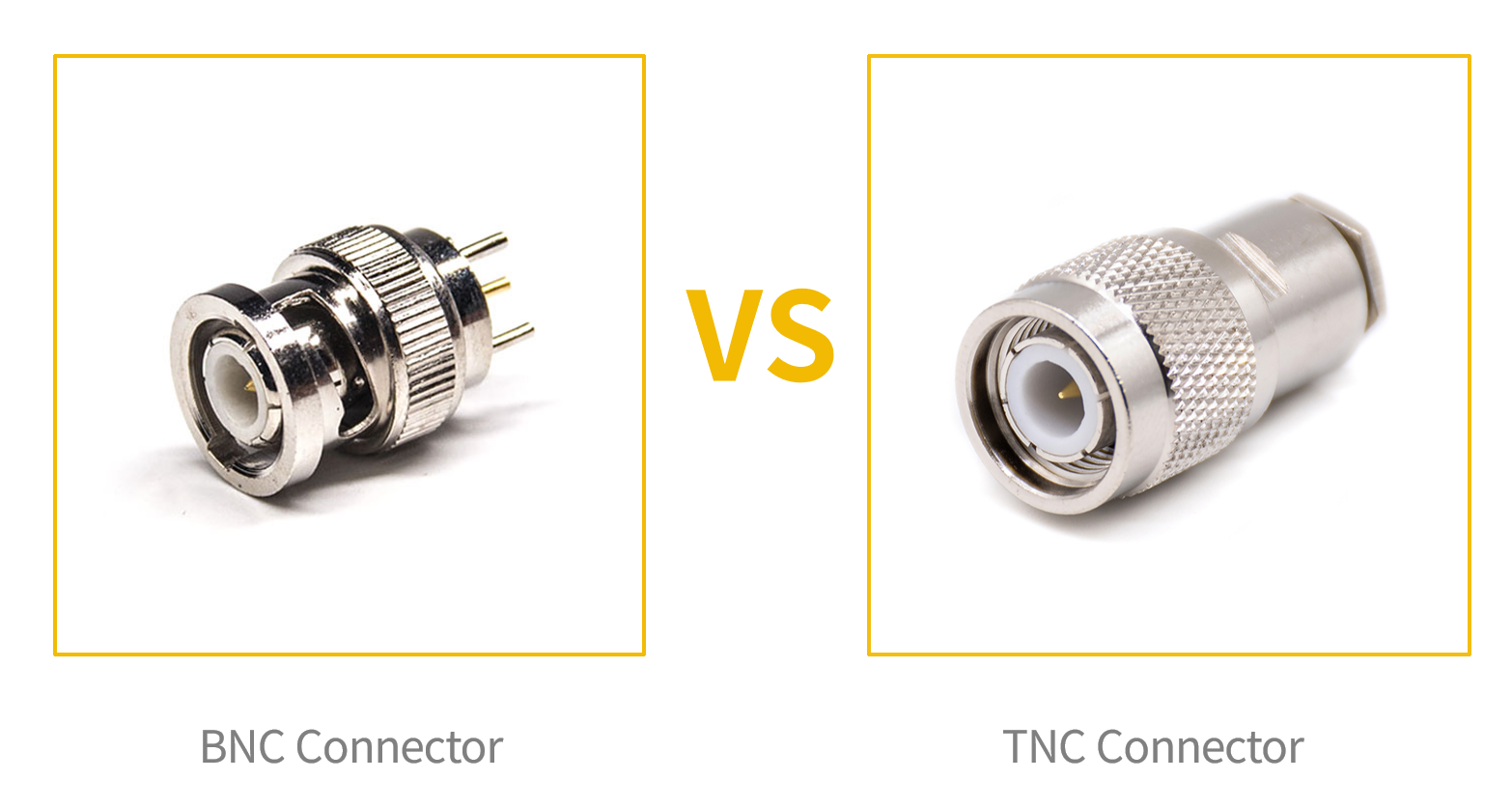

3.BNC Connector vs TNC Connector: Key Differences

While BNC connectors use a bayonet mechanism, TNC connectors feature a threaded coupling, offering better performance at higher frequencies (>11 GHz) and improved stability in harsh environments.

4.How to Connect BNC Connectors: Compression vs Crimp

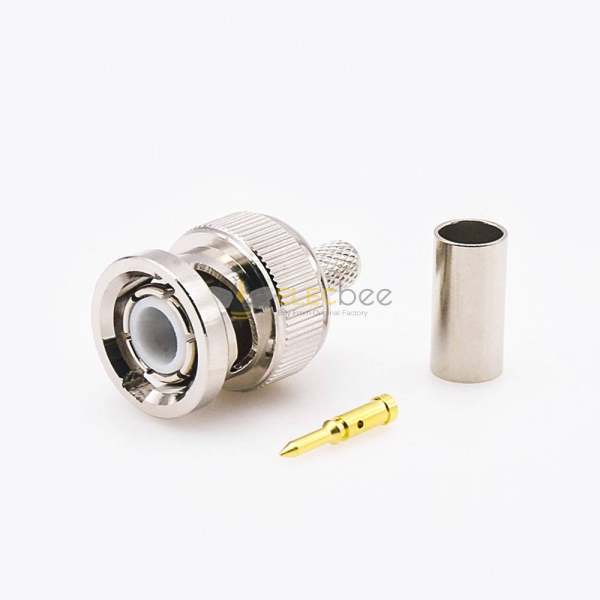

• Crimp Type: Deforms metal connector sleeves onto the cable for secure contact. Cost-effective, suitable for general applications.

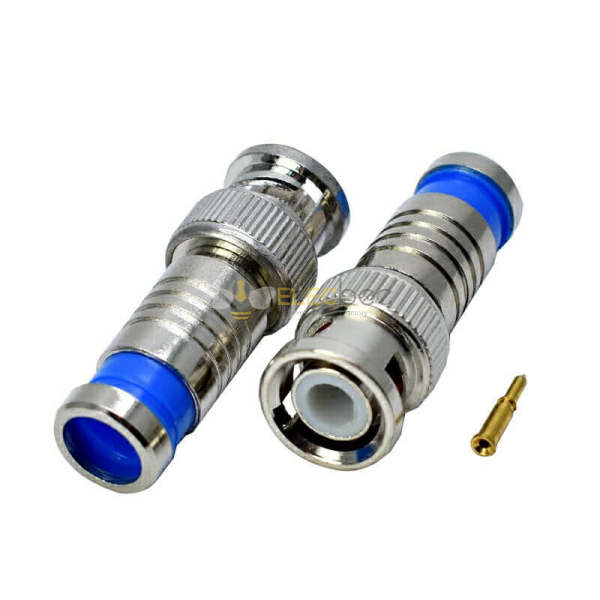

• Compression Type: Uses a 360° clamp to prevent dust and moisture ingress, providing longer-lasting and more stable connections. Ideal for professional installations where performance is critical.

5.Choosing the Right BNC Connector for Your Project

When selecting a BNC connector:
• Ensure compatibility with the cable type (RG6, RG11, RG59, etc.).
• Choose the connector type (compression or crimp) based on application needs.
• Consider frequency and voltage requirements to maintain signal integrity.

6.FAQs About BNC Connectors

Q: Can I use a BNC connector for CCTV?
Yes, RG59 BNC connectors are standard for CCTV systems.

Q: What frequency range does a BNC connector support?
Typically up to 4 GHz; special designs can go higher.

Q: Are BNC connectors reusable?
Yes, especially compression types are designed for multiple uses without signal loss.

BNC connectors remain a versatile, cost-effective, and reliable choice for RF and video applications. For expert advice or more information about selecting the right BNC connector, feel free to contact Elecbee.
