Elecbee PCI Express x1 بطاقة إلى 1 × المسلسل RS-232 عالية السرعة 921K مع التيار الكهربائي

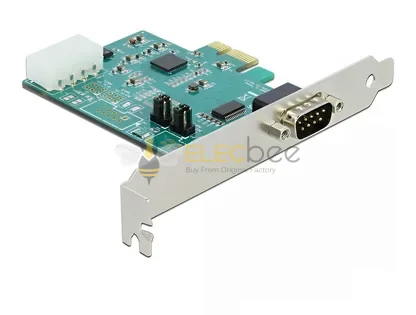

Overview Description The Delock PCI Express card expands your system by one High Speed RS-232 port. Use this card for applications like data logging, machine control systems, automation, development or communication. By the extensive surge protection and the wide temperature range this card can be used in the industrial area. Connected devices can be supplied with voltage of 5 V or 12 V optionally. Technical details Chipset: Exar 17V352 Connector:     external:      1 x Serial RS-232 D-Sub 9 Pin male     internal:      1 x PCI Express x1, V2.0      1 x 4 pin Molex power connector Baud rate: up to 921.6 Kb/s Compatible to 16C550 UART FIFO 256 Byte Data bit: 5, 6, 7, 8 Stop bit: 1, 1.5, 2 Parity: None, Even, Odd, Space, Mark Flow Control: RTS / CTS, XON / XOFF Selectable voltage supply 5 V / 12 V on RI of pin 9 and DCD of pin 1 Electrical power per port: 2.5 watt (5 V / 0.5 A) Electrical power per port: 6 watt (12 V / 0.5 A) Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V Operating temperature: -30 °C ~ +75 °C Storage temperature: -40 °C ~ +85 °C Ambient relative humidity max. 95 % (non-condensing) 15 kV ESD protection for all signals I/O address and IRQ assigned by the system System requirements Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6 PC with a free PCI Express slot Power supply with a free Molex power connector Package content PCI Express card Low profile bracket Driver CD User manual Package Box
