USB, also known as Universal Serial Bus, combines power and data into one reliable connector.
Elecbee standard USB+ series connectors are available in all types A, B and C in vertical or right angle orientations. USB combines data and power in one small package. Type C is ten times faster than traditional USB and can be matched in either direction.
Standard USB 1.0 communication speed up to 1.5 Mbps
Standard USB 2.0 communication speed up to 480 Mbps
Standard USB 3.0 communication speed up to 5 Gbps
Industry-standard plug-and-play technology
hot plug
Compatible with asynchronous and synchronous data transfer methods
Integrate current serial, parallel, keyboard mouse and game ports as well as ISDN and PBX
USB connectors have become the standard for many applications such as smartphones, printers, cameras, set-top boxes, portable radios, flash drives, medical devices, car ports, in-flight infotainment systems, and security cameras, to name a few.
USB Connector Types and Variations

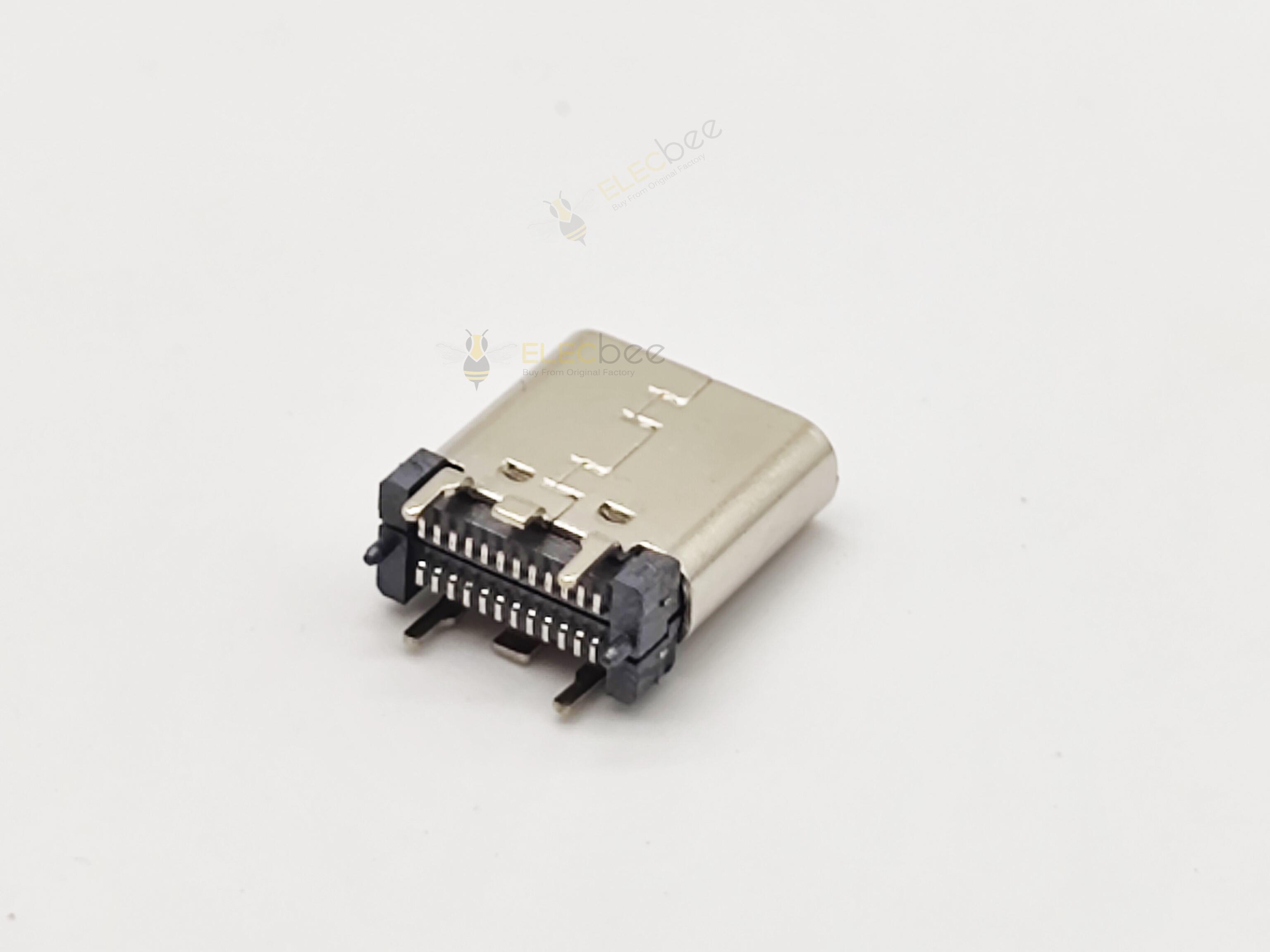

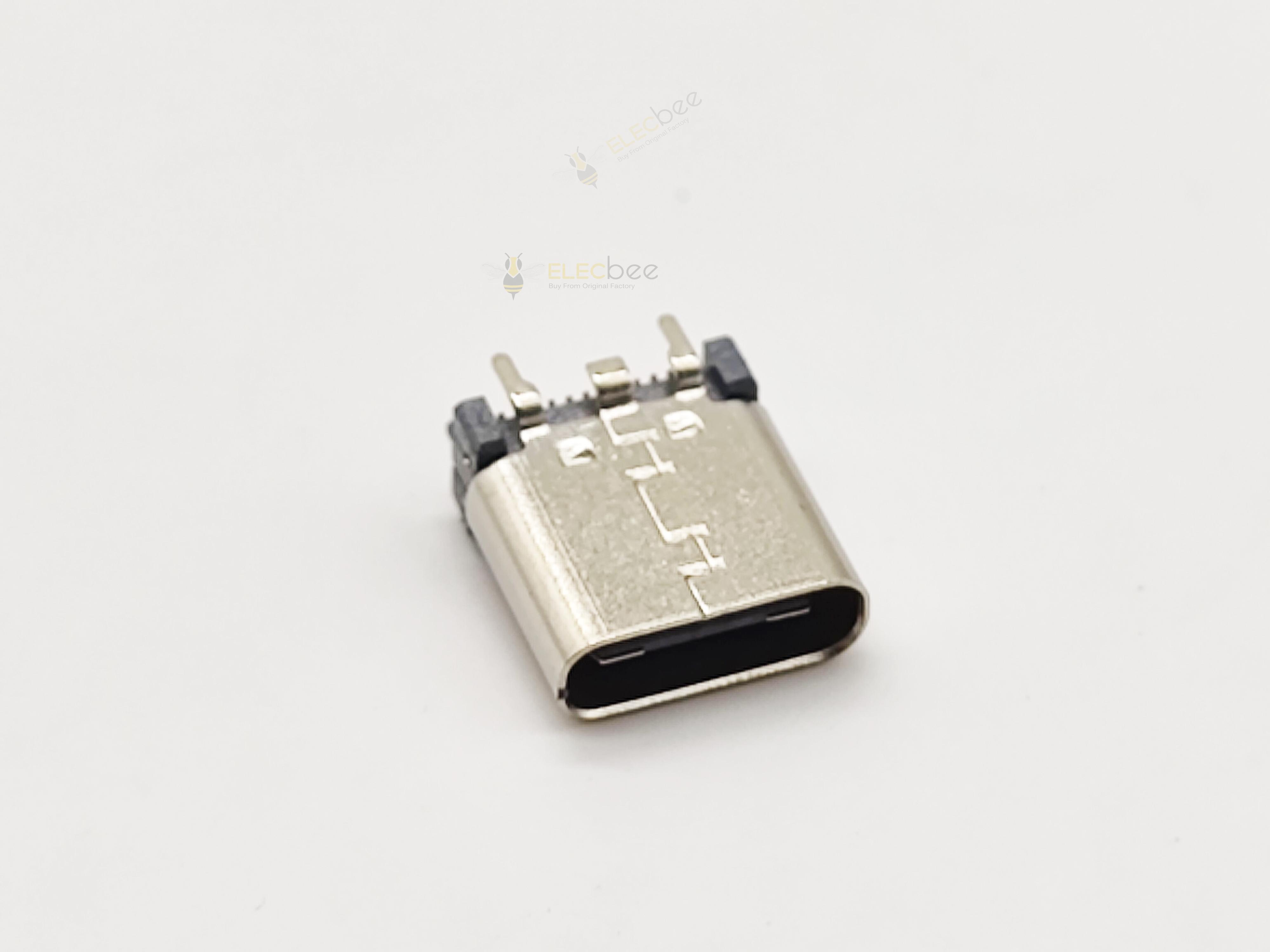

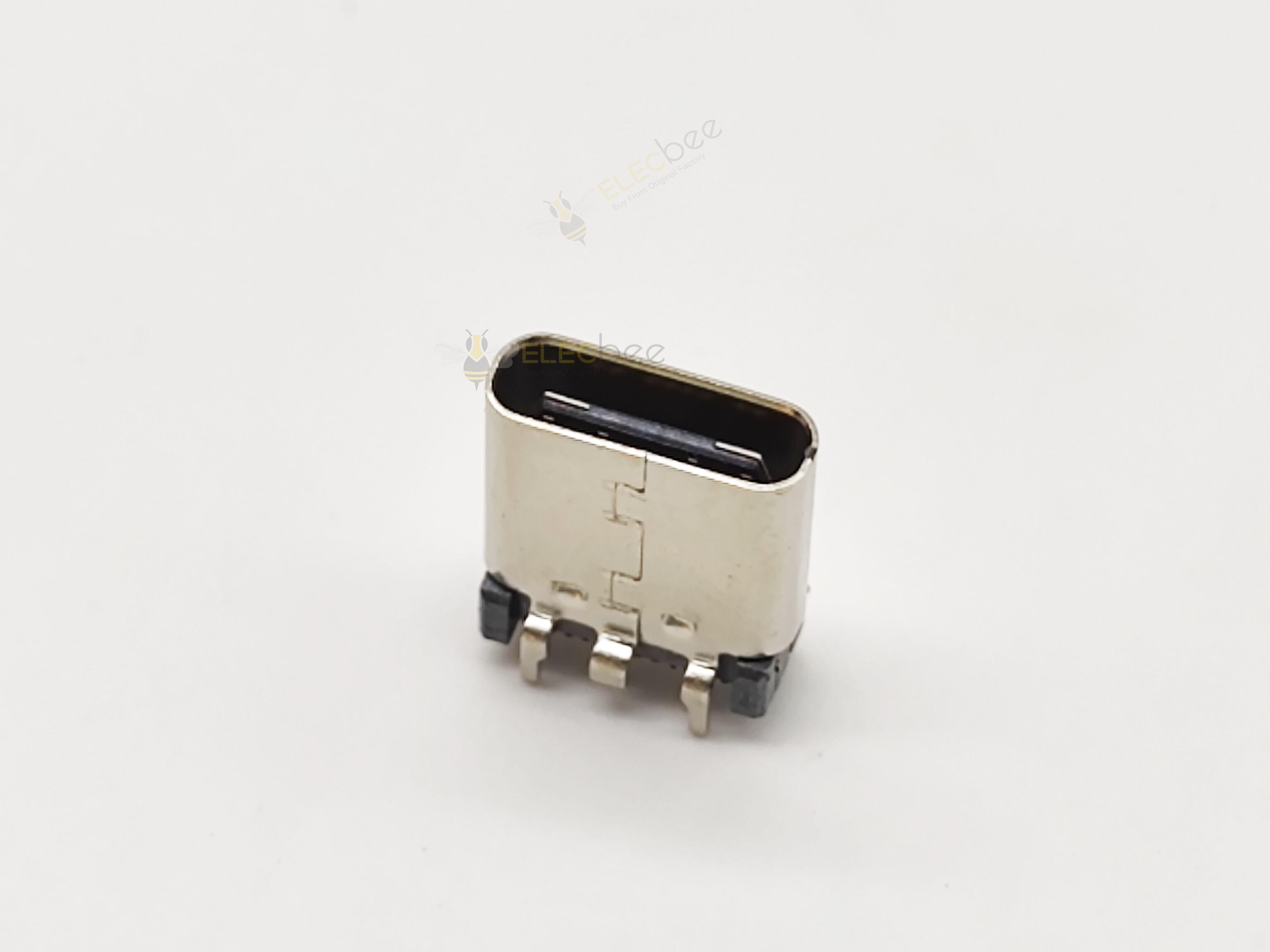

USB comes in Type A, Type B, Mini B, Micro B, and USB-C (officially known as USB Type-C). Standard USB has 4 contacts, while some have 5 contacts. USB-C has 24 contacts.
Right-angle (side entry) and vertical (top entry) USBs are available with through-hole or surface mount terminations.
USB 2.0 is rated at 700 mA, which is good for speeds of 1 GB per second. USB 3.0 is rated up to 2 amps and runs at 5 GB. The latest USB Type C 3.1 is rated up to 5 amps, 10 times faster than traditional speeds, and 10 GB per second.
The main industries for USB connectors are consumer, data, medical, automotive and Mil-Aero.
