Dust and particles are a potential threat to any coaxial system, whether in an indoor or outdoor environment. Any particles in the coaxial connector or wiring can cause RF performance degradation, sparks and malfunctions under high power conditions. Due to the nature of RF energy, even temporarily unused coaxial ports within an assembly must be properly terminated to prevent such ports from interacting with the external environment, invasive environmental substances, or interfering objects.

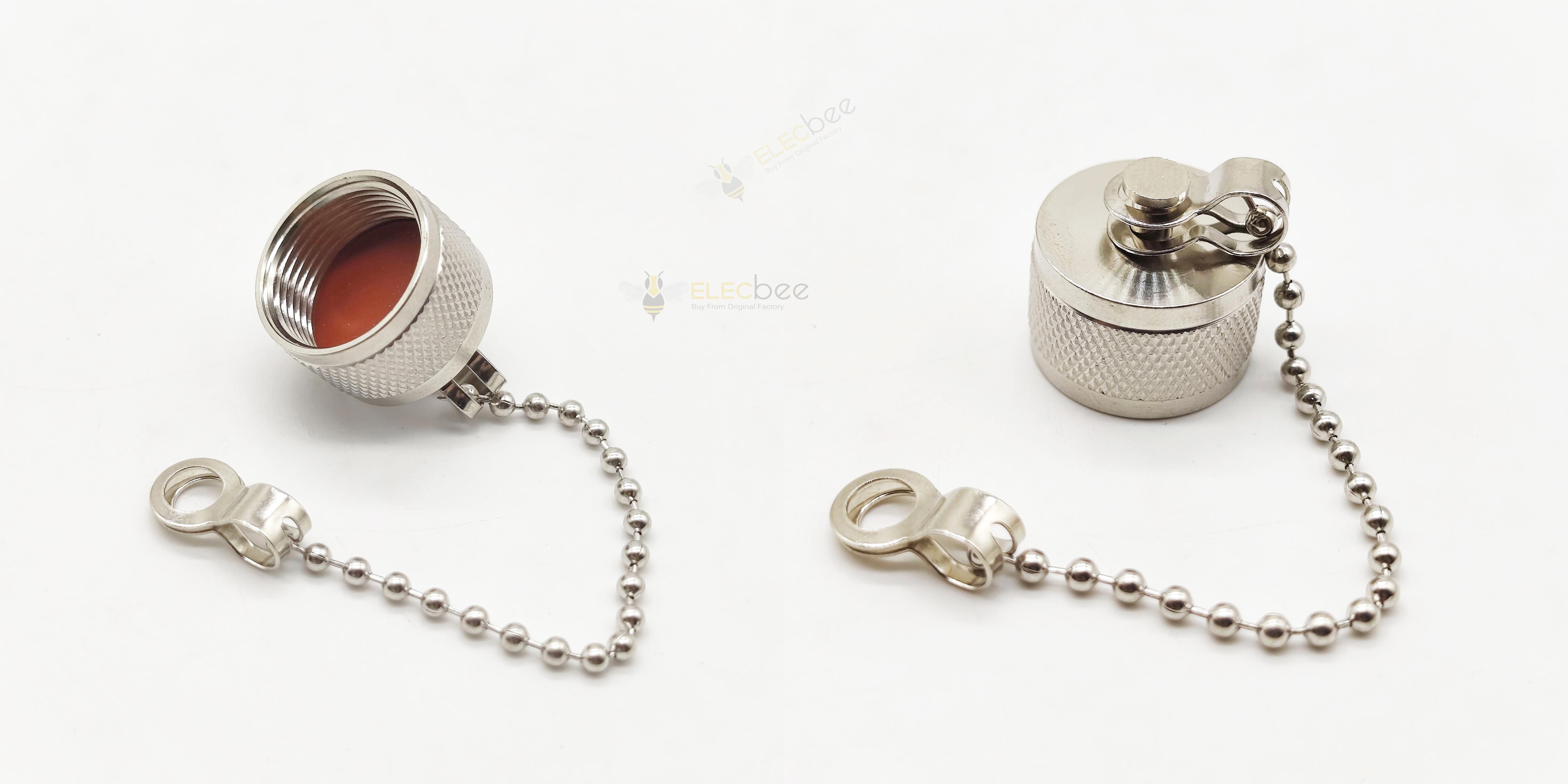

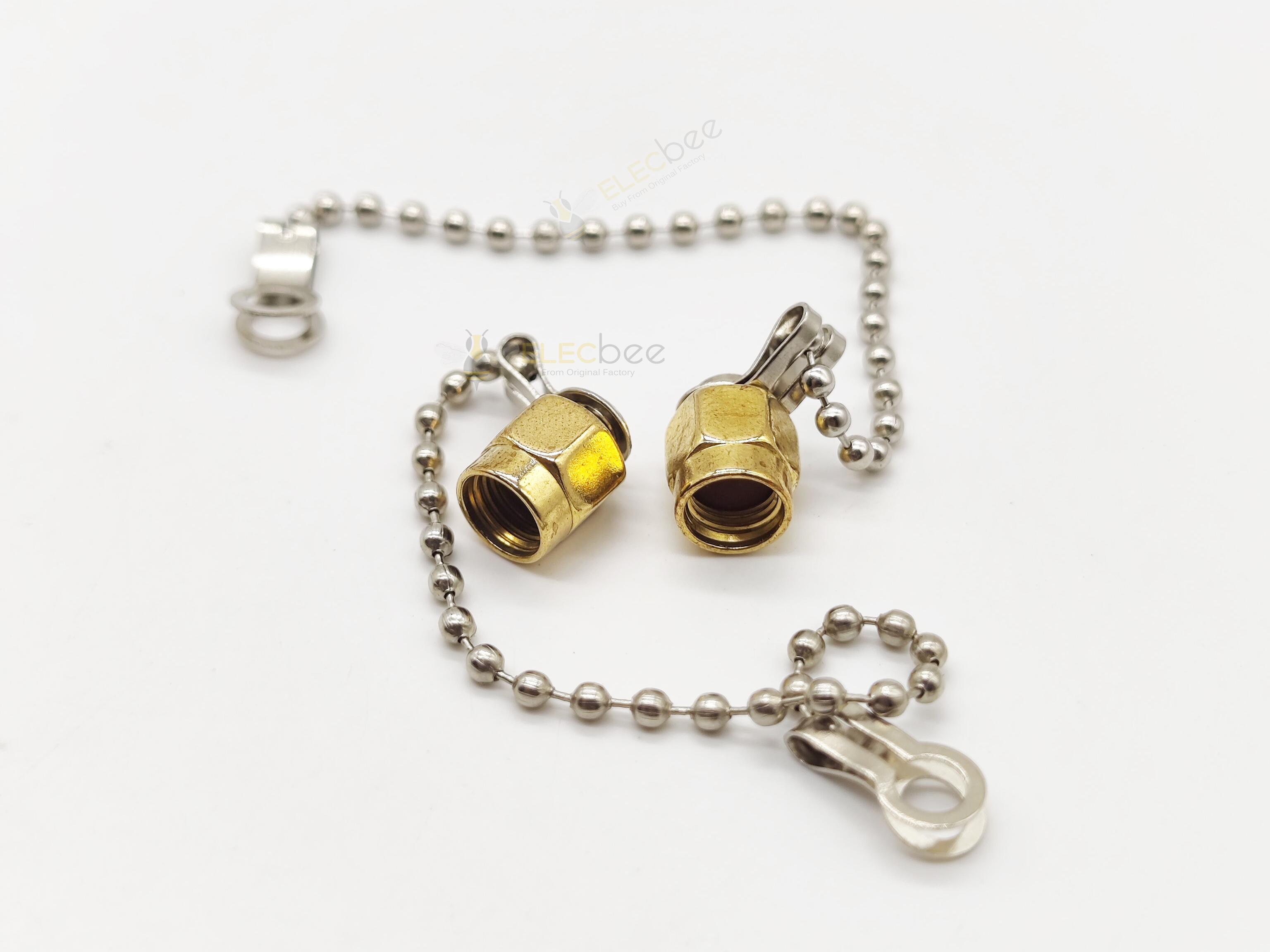

Coaxial connector dust caps are specialized termination devices used to provide additional environmental protection compared to standard termination devices. Additionally, most dust caps are available with either shorting or non-shorting terminations, depending on the electrical requirements of a particular port. In addition, for some ports that need to be operated frequently, dust caps specially equipped with safety tethers can also be used to prevent the dust caps from being lost or damaged.
Introduction to protection level
Here is a detailed introduction to the connector protection level. There are clear regulations on the level of waterproof and dustproof protection in the world, that is, the IP protection level, where the first X of IPXX is the dustproof level, and the second X is the waterproof level.
1. Dustproof level (X stands for meaning)
0 means no dustproof function;
1 means that it has protective performance against solids with a diameter of 50mm or more;
2 means that it has a strong protective function for solid objects with a diameter of 12.5mm or more;
3 means that it has protective performance against solid objects with a diameter of 2.5mm or more, such as electrical tools, etc.;
4 means that it has a strong protective function for solid objects with a diameter of 1.0mm or more;
5 means that it has a strong dust-proof function, completely prevents the intrusion of solid objects, and only a small amount of dust can enter;
6 means that the furniture has the highest dustproof function, and basically no dust can invade.
2. Waterproof level (X stands for meaning)
0 means no water resistance;
1 means that it has a protective function against water droplets;
2 means that when the electrical appliance is tilted at an angle of 15 degrees, it can protect against the intrusion of water droplets;
3 represents that it can prevent water spray from harming electrical appliances;
4 represents protection against all-round water splash;
5 represents the ability to protect against water with a certain injection pressure;
6 represents a certain protection against the impact of waves;
7 means that under a certain water level, it can ensure that water cannot penetrate;
8 represents the highest protection against water, and can operate normally under a certain pressure for a long time.
