Circular connector is a multi -needle connector mainly used for external interfaces. They can be used for data transmission, electrical signal transmission, or power supply for electrical equipment. In some cases, a circular connector is designed as a signal that can be called a mixed signal, and can be described as a power supply and control connector. These types of multi -needle connectors are used for power and signal transmission.
Types
The term circular connector was originally used to specify a circular plastic connector (CPC). These types of connectors or circular metal case connectors (CMC) are used in industrial applications that require strong and safe wire connections. They aim to bear the harsh environment and provide safe connections for industrial applications. So what are the common circular connectors?
The M8/M12 sensor connector is now recommended to almost all on-site bus specifications, and follows the IP67 protection level according to the IEC 61076-2-101/104 standard. Traditionally as a sensor and brake in the connection automation technology (automation) Sensors and Actuators).
M5/M8/M12 sensor adopts a thread locking method. The structural design is excellent waterproof performance (protective grade IP67, IP68), oil resistance, and efficient and stable. It is suitable for complex and bad and bad.
MS5015 Mil-Spec connector is manufactured in accordance with military specifications. Their design considers the need to protect the connection from the impact of environmental factors, so that they can be used for military and aerospace applications.

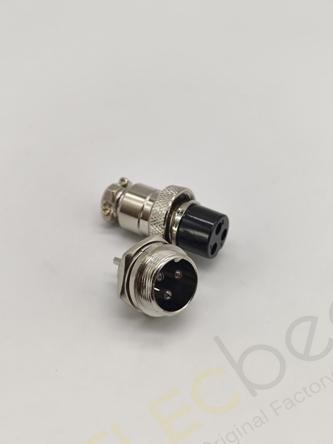

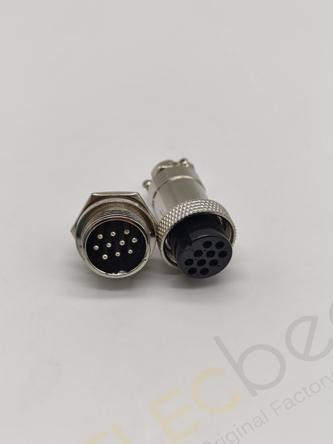

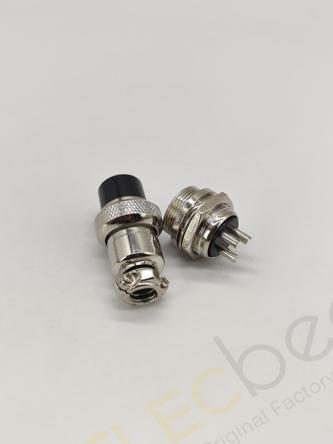

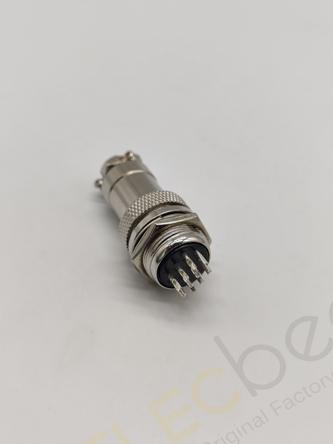

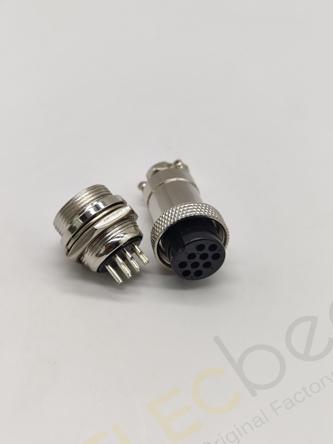

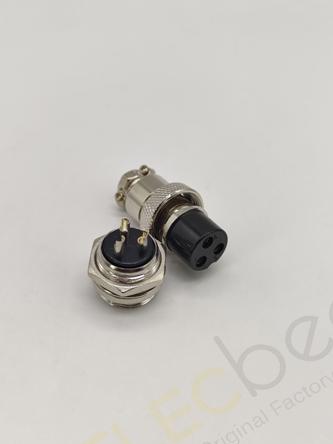

The GX series (GX12/GX16/GX20/GX25) Aviation connector uses a threaded connection, the conductive performance is stable, and it has a certain waterproof function and is safe and reliable. It is first applied in the aviation field to meet the environmental requirements of mobile or vibration. With the development of production technology and the decrease in costs, the civilian field has also begun to apply. Now widely used in aviation, navigation, computers, communications, petroleum surveys, navigation, anti -theft, transportation, mechanical and electronics and other fields.
Shell size
The shell is often used to describe the size of the connector. The size of the shell is a nominal number, which is specified by a two -digit number, and sometimes it is to follow a letter code.
The larger shell size is usually used for more current equipment. In contrast, smaller shell design is used for small current equipment.
Selection Criteria
The important parameters to be considered when selecting a circular connector include the type, gender, end connection method, and installation features and performance.
Elecbee focus on the research and development and production of circular connectors for more than 17 years, we can provide you with high-quality products and preferential prices. If you want to know more about our circular connector, please contact shirley@elecbee.com
