EV Connector: Types and Features of EV Charging designs

26/09/2022 Leon


There are many types of EV Charger designs A professional industrial design company, through the research on national standards such as charging piles, EV Charger conductive charging systems, connecting devices for conductive charging, AC charging interfaces, DC charging interfaces, and communication protocols, clarifies the national standards for charging piles and EV Chargers.



The EV Charger is an electric vehicle charging interface and an important supporting charging device to promote the development of the electric vehicle industry. With the rapid development of the electric vehicle industry, the industry of supporting charging equipment such as charging piles and EV Chargers has also prospered. At present, there are many EV Charger products in the market with different shapes, simple and beautiful, safe and comfortable to use, and they provide users with an increasingly high-quality charging experience. Below we briefly outline the characteristics of the EV Charger design from the level of industrial design.





1. There are many types of EV Charger designs



A professional industrial design company, through the research on national standards such as charging piles, EV Charger conductive charging systems, connecting devices for conductive charging, AC charging interfaces, DC charging interfaces, and communication protocols, clarifies the national standards for charging piles and EV Chargers. Combined with ergonomics, research and design different types of EV Chargers such as DC EV Chargers, AC EV Chargers, slow charging EV Chargers, fast charging EV Chargers, American standard EV Chargers, European standard EV Chargers, and national standard EV Chargers.



2. Humanization of EV Charger design



1. The structure scheme of the EV Charger can be designed into 2 different forms according to different needs: A. Separate structure (easy to assemble, rich in shape, slightly weaker in strength); B. Integrated structure (waterproof performance and overall strength will be higher than the split type) Well, the ease of assembly is inferior to the split type)



2. It is ergonomic, the button is flat, and the position is set in a convenient position for operation; the handshake part is designed with an angle of <75° to avoid interference between the EV Charger and the charging pile or the vehicle during operation. In terms of hand shape, it is designed according to the different hand sizes of Asians and Europeans, and the size is between 85mm-100mm.



3. In terms of material selection, most of the gun body adopts outdoor PC, PC+PPT, and the gun head mainly adopts PPT and PA66. The whole is resistant to high temperature, low temperature, and rolling, and it will not fade after 10 years of outdoor use. 4. Use simulation analysis to discover possible design defects in the production or use process of products in advance, and improve the quality and efficiency of product development.



3. The shape of the EV Charger is novel and beautiful

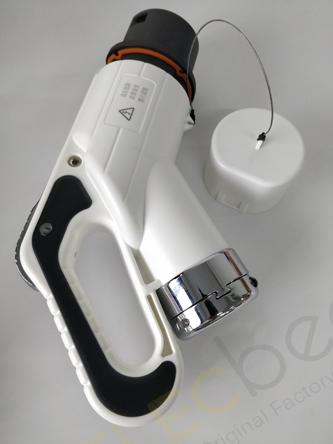

With the increasingly fierce competition in the EV Charger market, the problem of market homogeneity inevitably occurs. More and more companies regard the design of EV Chargers as a breakthrough point for the market, and pay more and more attention to the novelty and beauty of the appearance of EV Chargers. Spend. For example, this streamlined EV Charger is inspired by speed, which is based on the shape curve of animals running and people running. Through abstract and associative design methods, it is designed with smooth and rhythmic lines to give the product a fashionable and technological shape. The style gives people a fast and modern visual experience as a whole, reflecting the functional characteristics of the EV Charger for safe and fast charging.





Elecbee is the major distributor of Dongguan Dosin Hardware Electronics Co., Ltd.(top 10 connector manufacturer). Precision-processed materials, solid and practical for endurable year round service. Intensive quality of machine in low depreciation in provided to generate high economic efficiency for the clients. If you need solutions of connectors, please contact the phone at +86 18271418329, Or send emails to: service@elecbee.com, we are of service at any time, and look forward to cooperation with you.
