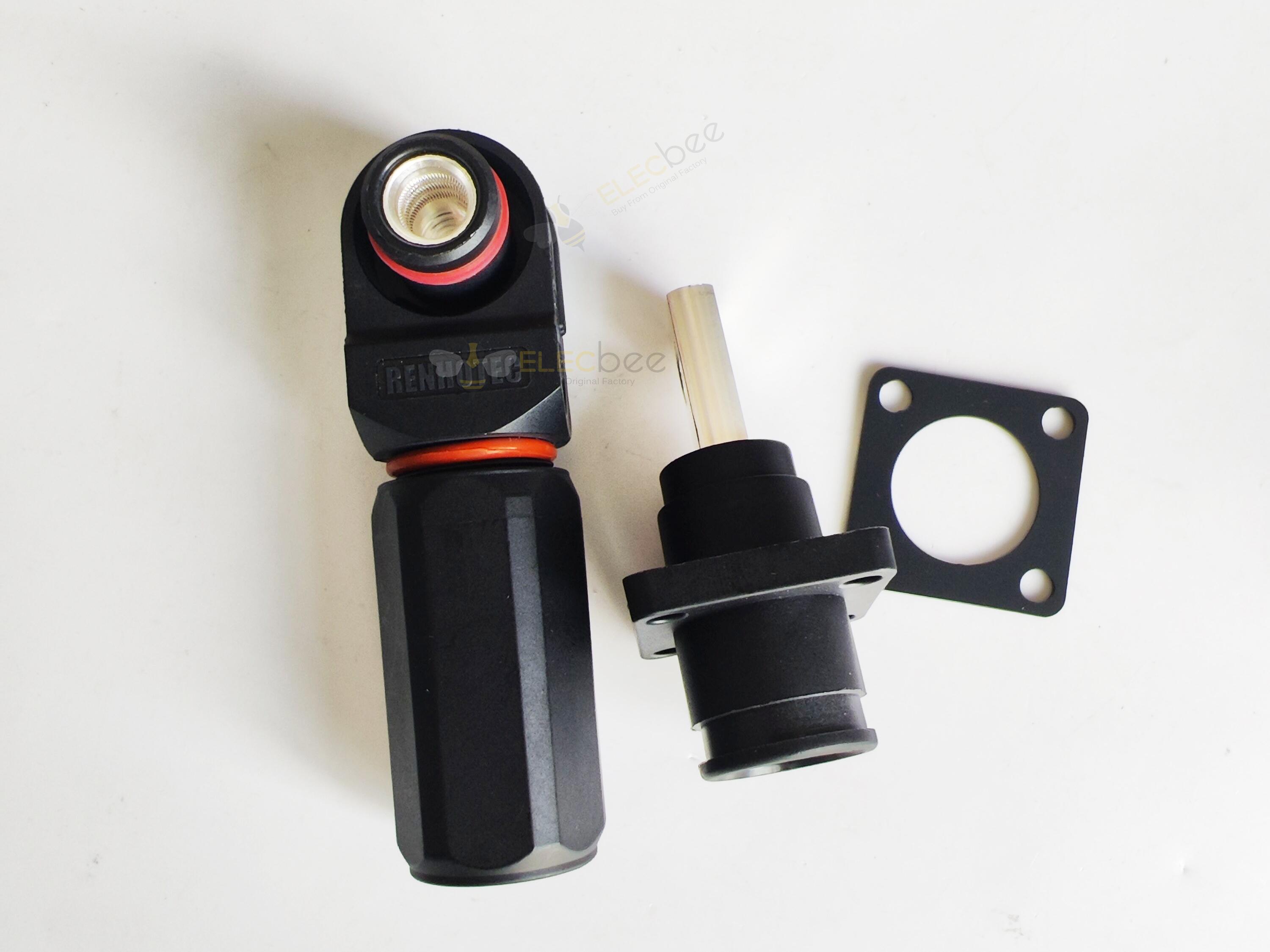

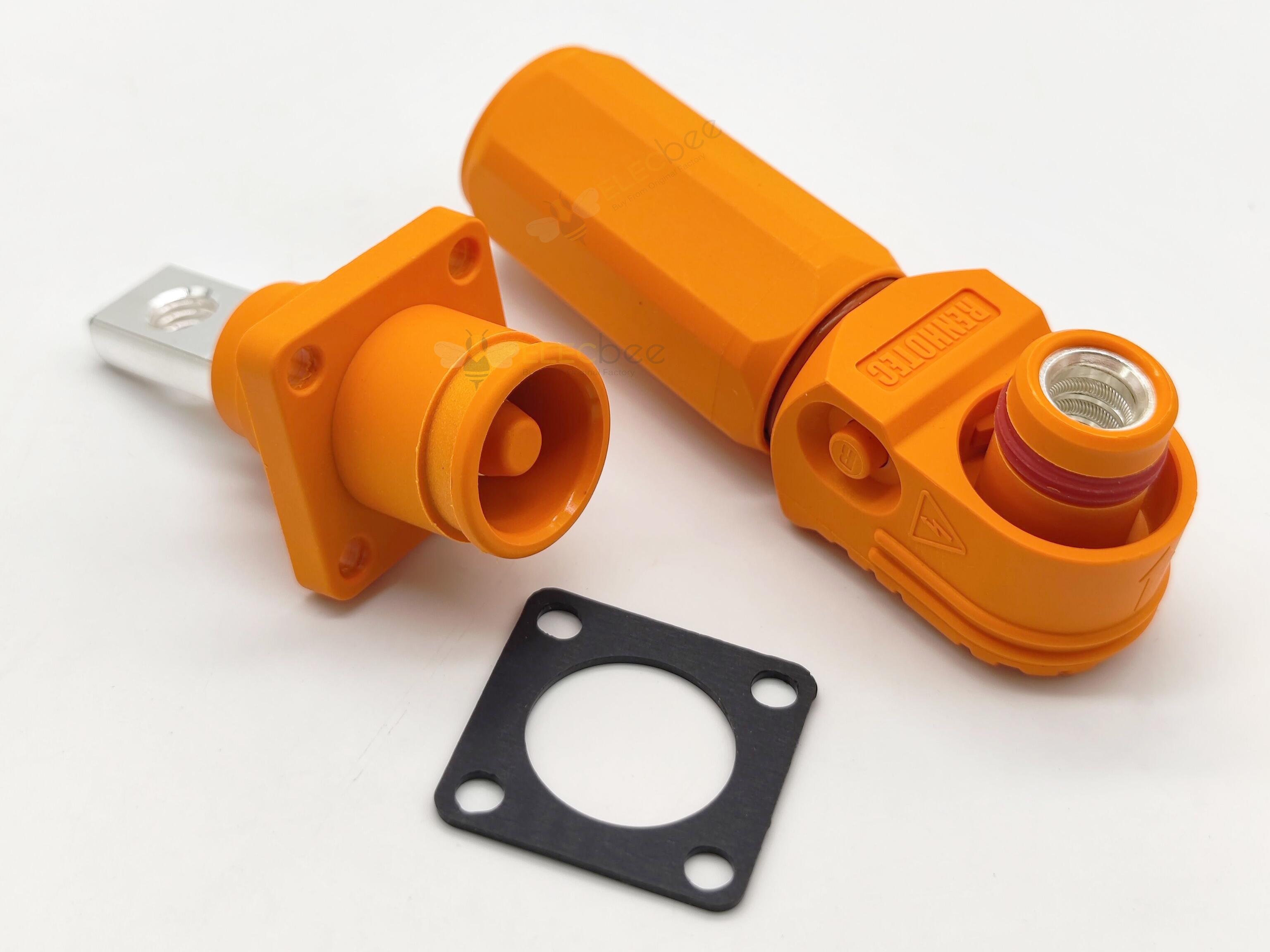

Under the target policy of "carbon peak, carbon neutral", the energy storage market has gradually expanded, and the demand for energy storage connectors has also ushered in explosive growth. At the same time, the product performance requirements are also crucial. Elecbee in the connector industry continuous innovation technology, pioneering, for the status quo dedicated research and development, designed for energy storage system energy storage connector, with high security, long service life, superior connection performance and other characteristics, products can cover the mainstream application of user energy storage, adapt to a variety of application scenarios, to strength should change.
1.Safe and convenient
● Anti-miscontact, contact technology shunt principle;
● High protection level, ensure the efficient and stable operation of the system;
● Quick plug and pull design, module installation, plug and play;
● Flexible configuration, light and easy to install, a variety of end ways, 360° rotary plug.
2.Performance characteristics
● Waterproofing class: Mated to IP67
● Rated voltage; 1000V/DC
● Rated current; 60A~500A
● Voltage resistance; 2500V AC
● The number of plugging and pulling; > 500
● Operating temperature; - 40 ℃ ~ 105 ℃
● Fire rating; UL94 V-0
● High temperature resistance, impact resistance, safe and reliable;
● High safety, high efficiency, low interference operation performance, safe.
3.Application scenarios
Energy storage connector is a product that connects different circuit boards together. Its transmission ability is good, and it is a very good connector product among connector products at the present stage. It is used in the production and manufacturing of financial industry, medical devices, network communication, elevators, industrial control automation, power supply system, household appliances, office supplies, military manufacturing and other fields. There are different types of interfaces between circuit boards of energy storage connectors, and each type has its own characteristics. Here is a brief and detailed look at these aspects:
Row the pins. Bus-arranging and pin arranging are relatively cheap, cost-effective and common interface modes. Application fields: low-end, large-size intelligent products, development board, debugging board, etc. Advantages: cheap, convenient, hard connection firm, strong over current ability, conducive to lead bonding and detection; Defects: large volume, not easy to bend, large interval, hundreds of pins can not be connected (too big).
Some board to board connectors for compact goods, than row needle density. Application field: Widely used, basic intelligent hardware products are basically in use. Advantages: small size, needle number, 1 cm length can do 40 needles (the same specification only do 20 needles). Cons: The overall design has to be fixed and expensive and can't be plugged in and out often.
Thickened board to board connector, can be merged, disassembled and inserted on the row of pins. Application scenario: detection board, development board, and large fixed devices (such as main box cabling). Advantage: It is cheap and common to use with pins, and the connection is easy to measure accurately. Defects: not easy to repair, large volume, not suitable for mass production scenarios.
FPC connector Connector /ZIF connector. Many smart machines and devices have to pull data signals out of the computer motherboard, and the FPC is small, flexible, multi-end shape, is a very good choice. Application scenario: Power circuit bending, computer motherboard and external equipment connection, auxiliary board and computer motherboard connection, product interior space tight. Advantage: Small and cheap.
In addition to the energy storage connector, the new energy connector of Elecbee optimization also includes charging gun and high voltage mutual chain connector. Elecbee optimization is giving full play to its own strength, constantly introducing new ideas, making contributions to the global realization of zero carbon emission, and jointly helping the smooth realization of the goal of "double carbon".
In the future, Elecbee will continue to improve technology, brave to meet the challenges, help the connector industry towards intelligent, low energy consumption, high efficiency development, to provide customers with competitive solutions and products, to create contribution to China.
