Elecbee 树莓派7寸高清液晶屏1024*600显示模组套件

Operatingvoltage:5V(currentrequirement1A-2A),forexamplecarpowerneedtoadda5Vregulator
Ratedpower:6-7W
Signalinput:2AV+VGA+HDMI(HDMI1.2)
Support5VDCvoltageinput,youcanuseUSB,orpowerbank,butthepositiveandnegativecannotbereversed,toavoiddamagethecircuitboard
Resolution:1024*600,
PlugandPlay:Support
OSDlanguage:SimplifiedChinese,TraditionalChinese,English,Japanese,Korean,Spanish,French,German,Italian,Portuguese
Control:Multi-functionOSDoperationorpotentiometeradjustthebrightnessandcolor
Features:Usingmatureprogram,cleardisplay
Supportimageflipupanddown,theimagecanconversion4:3/16:9displayformat

LCDscreenparameters:

Displaysize:7inch
Touchscreen:Notsupport
Dimensions:165(W)×100(H)×5(D)mm
Viewingarea:154.08(H)×85.92(V)
Resolution:1024×3(RGB)×600
Pointdistance:0.05(W)×0.15(H)mm
Viewingangle:L70°R70°U50°D60
Paneltype:TFT
Displaycolor:262K
Contrastratio:500:1
Brightness:220cd/m2
Interfacetype:Digital
Thenumberofconnection:50PINDigital(TTL)TCON
Backlight:LED
Applications:mobileDVD,digitalphotoframe,carsystems,multimediaapplicationsandotheraudiovisualsystems

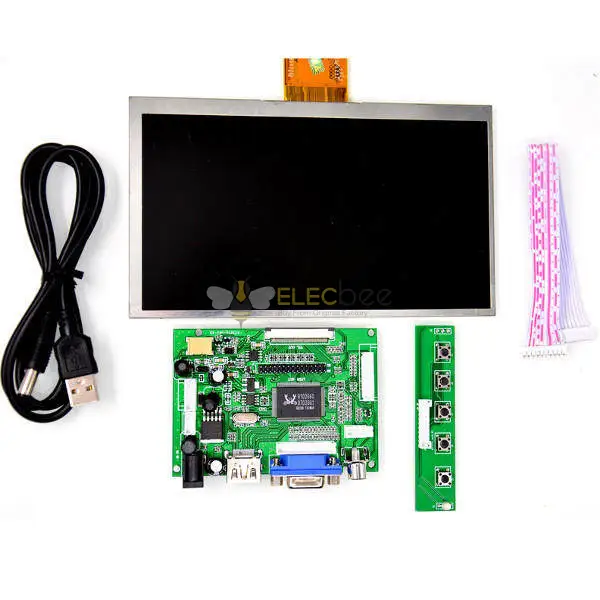

Packageincludes:

1x7-inchLCDscreen
1xLCDDriverboard （绿板/蓝板随机发货）
1xWhitecable(connectedtothekeyboard)
1xLonggreenkeyboard （绿板/蓝板随机发货）
1xUSBtoDC5.5powerline
