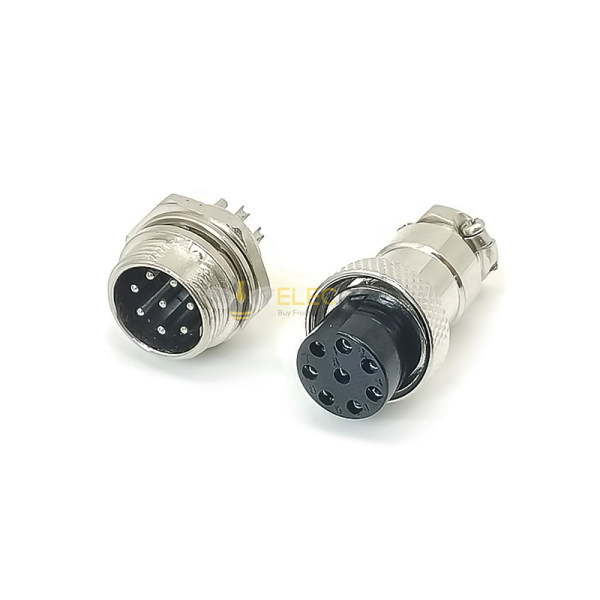

Elecbee GX16 航空连接器 公和母 8芯 直式面板安装 焊线 连接器

SKU: EB-404-0007
收藏
主要特点

高强度连接:

GX16连接器采用金属外壳,确保稳固的电气连接和机械强度。

多种引脚配置:

提供多种引脚配置,以满足不同设备和应用的需求。

便捷安装:

设计简单,支持快速连接和断开,提升安装效率。

广泛应用:

广泛用于自动化、机器人、航空航天等多个领域。

展开
属性
连接器类型
插头,插座
安装类型
面板安装
端接
焊接
接触件类型
公针,母针
外壳表面处理
镀镍
针位数
8芯
工作温度
-20℃~+85℃
额定电流
4A
额定电压
125VAC
连接器系列
GX16
颜色
银色
紧固类型
螺纹式
方向
直式
外壳材料
锌合金
接触件材料
铜合金
接触件表面处理
镀银
绝缘材料
PBT
适配线径
7.5mm~8.5mm
外壳尺寸
16
绝缘颜色
黑色
键位
A扣
描述

配送指南
运费与发货
发货周期
现货商品预计3天内发货。
Elecbee每天下午5点发货一次,周日除外。
发货后,预计送达时间取决于您选择的承运商。
DHL快递:3-7个工作日
DHL电商:12-22个工作日
FedEx国际优先快递:3-7个工作日
EMS:10-15个工作日
挂号航空邮件:15-30个工作日
运费标准您订单的运费可在购物车中查看。
发货选项我们提供DHL、FedEx、EMS、顺丰速运和挂号航空邮件国际配送服务。
发货追踪订单发货后,我们将通过邮件通知您追踪号码。您可以使用“我的订单追踪”功能追踪您的订单。
退货与保修退货通常在发货日期30天内完成退货申请。请联系客服获得退货授权。商品须未使用且保持原包装。运费由客户承担。
保修所有Elecbee购买商品均享有30天无理由退款政策,以及1年制造缺陷保修。
此保修不适用于因客户组装不当、未按说明操作、产品改装、疏忽或不当操作而造成的缺陷。
下单与订购如何订购Elecbee接受在线订单。
加入购物车 > 结账 > 提交订单 > 完成支付 > 发货
支付支持 PayPal、信用卡(包括 Visa、MasterCard、美国运通卡)以及银行转账。

为您推荐

评论
ELECBEE
所有评论均来自已验证的购买者
1 星
0%
2 星
0%
3 星
9%
4 星
9%
5 星
82%
L****s
appears to be quality
review-image
j****y
I am very happy, after receiving goods immediately try, feel better than expected result
P****n
I could probably have used these a lot better when I was younger. As it turns out, I no longer have the fine motor skills to solder things that are this small. They do seem to be very good quality.
M****n
needed a nice way to pass servo motor control wires through a panel while keeping things grounded and shielded. These do the trick and are resistant to vibration.
F****y
These aren't military grade hardware but are completely functional at an unbelievable price.
F****y
works well. I think this will keep burning man dust out of my computer box driving EL wire light show.
D****n
Perfect pair of GX16 8-pin connectors for my DIY aviation project. The metal housing feels solid and ensures a reliable connection. Soldering was straightforward thanks to the clear pin layout.
a****r
Good quality connector with strong build. I used it for a panel mount setup and the fit is snug. Only took a few minutes to solder all 8 pins. Works exactly as expected.
j****n
Needed a durable, straight-mount connector for a custom control box. These delivered. The mechanical strength from the metal body is impressive. Highly recommend for industrial use.
T****n
Works fine but took some time to solder neatly. The pin configuration matches specs, and the connection is stable. Just wish the solder cups were a bit larger.
T****l
Exactly what I needed—male and female pair in one pack. Easy installation and robust design. Great for prototyping or repair jobs where reliability matters.
