Elecbee 1 Ft. Magnet Antenna (50 Ohm) for Vehicles (SMA-Male) + Adhesive Disk | weBoost 311125

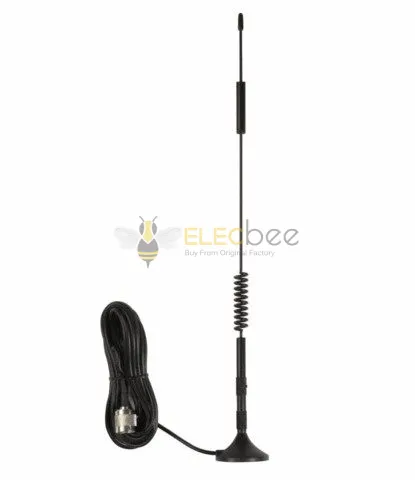

1 Ft. Magnet Mount Vehicle Antenna (External) with SMA Connector plus Adhesive Mounting Disc for Non-Magnet Roofs | weBoost 311125 by Wilson Electronics.

Dual band cellular and personal communication services (PCS) 800/1900 MHz 12 inches magnet mounted antenna for vehicle exterior installation. It provides up to +6.1 dB gain. It comes with a 12.5 feet RG174 cable. The type RG-174 cable terminates in a type SMA-male connector. Purchase includes mounting disc adhesive to mount on non-magnetic roof vehicle such as aluminum, fiberglass, etc. Adhesive disk part # or SKU is 990007.

This is a magnet base 3G and 4G high profile outside vehicle donor antenna. It great for any automotive car, pick-up truck, RV, SUV. It is a 50 ohm impedance antenna for 50 Ohm vehicle cell phone signal booster systems. It is for capturing cell phone signals from nearest cellular towers. It collects signals from all directions omni-directionally.

Installation is easy: Place this mag. mount antenna on top of vehicle where it will stick magnetically. This mobile antenna will work with all multi-user vehicle cell phone boosters including the SureCall Fusion2Go series and weBoost Drive series kits that require SMA connector. UPC: 813986005002 (old model with 10 ft. cable) / 811815022572 (this new model with 12.5 ft. cable).

This omni-directional magnet mount antenna's height is twelve point twenty five inches. It has 12.5 feet RG-174 cable attached to it with SMA Male connector at its end. It is not the standard antenna included in weBoost Drive 4G-X and 4G-M kits. The standard ones are low profile and shorter in height. This is longer and taller at 12.25 inches.

Installation:

Identify a location on the top of your vehicle that is near the center of the vehicle roof. Place atleast 12 inches away from any other antennas and from any windows (including sunroofs). Clean the surface where you will place the outside antenna. Mount the outside antenna by placing on top of vehicle. NOTE: For aluminum roofs, use the included adhesive disk to secure outside antenna in place.

How can the cable can be routed with different vehicles?

The cable is strong enough that it may be shut in most vehicle doors without damaging the cable.

• Car/ Sedan: Cable routed into rear side door.
• SUV/ Van/ Hatchback: Cable routed into top of hatchback door.
• Truck: Cable routed into side door.
• NOTE: When going through car wash, remember to remove your antenna.

• Works on worldwide cellular bands for voice and 4G data: Cellular and PCS bands (not AWS).
• High performance for all cellular repeaters and boosters.
• Supports 2G, 3G, 4G.
• Designed for exterior vehicle installation.
• High efficiency & high profile design that stands out on any vehicle type to catch maximum signals.
• Rugged & waterproof for all weather operation.
• Simple install.
• Ground plane independent.
• 2-year warranty.

Highlights:

• Covers all cellular frequencies stated below.
• All M2M applications.
• High gain signal output surpasses others this size.
• Install instantly on any steel surface (required).
• Portable and easy to store.
• Outdoor rated waterproof.
• Great for cars and trucks.
• Connects to cellular boosters and modems.
• Assembled in USA.

Specifications:
