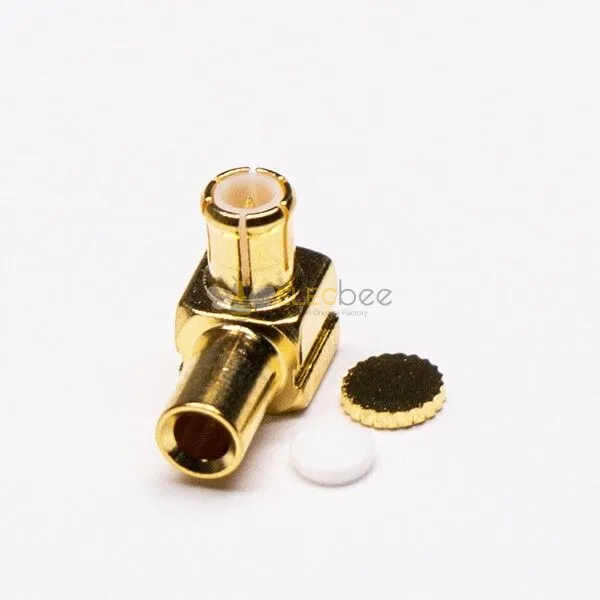

MCX Type Connector Right Angled Male Solder Type for Cable
- Brand: Elecbee
- SKU: EB-004-0045
- Availability: In Stock
- Price Gradient
- Ask for price for larger quantity
Ask a Question About This Product
- MCX Connector,Male/Plug,Right Angled/90°,Solder Type,Gold Plated;
- 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
- Snap-on Interface ideal for quick Installation and discount;
- High cost-effective with excellent boardband performance and low reflections.
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of MCX Connectors:
- Consumer Electronic: GPS, HDTV, Wireless Internet TV and Audio, smart phone antenna port,
- Aerospace and Defense: GPS and Hand-held Device
- Technology: Telemetry
- Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
- Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
- Industrial: Machine to machine communications
- Impedance：50 ohm
- Frequency Range: 0-6GHz
- VSWR: Straight type:1.25 max
- Dielectric Withstanding Voltage:1000 V rms
- Working Voltage: <170 V rms
- Center Contact Resistance:5 mohm
- Outer Contact Resistance :≦ 2.5 mohm
- Insultation Resistance:5000 ohms min
- Coupling: Snap-on/Snap-off
- Contact Retention: 4 lbs min.
- Mating Durability: ≧500 cycles (For Beryllium Copper Contact)
- Environmental Characteristics: Teflon -65°C ~ +165°C
- Vibration: MIL-STD-202 Method204
- Corrosion Resistance: MIL-STD-202 Method 101
|Center Contact Pin||copper||Au:3u"|
