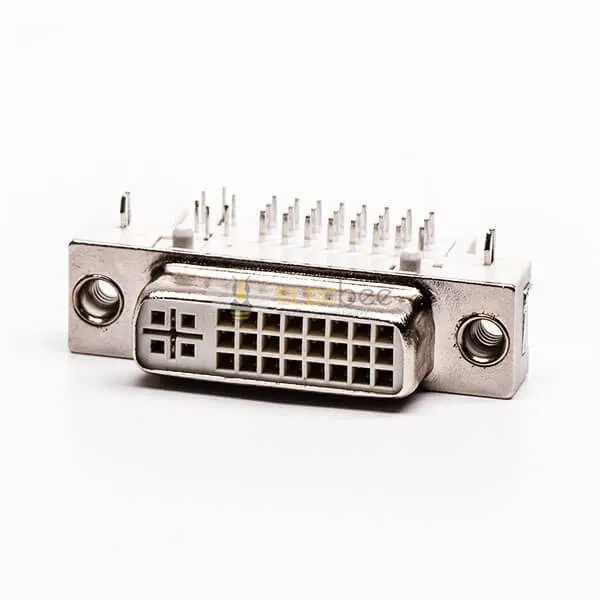

DVI Harpoon 24+5 Female Right Angled for PCB Mount
- Brand: Elecbee
- SKU: EB-606-0021
- Availability: In Stock
- Price Gradient
- Ask for price for larger quantity
Ask a Question About This Product
- DVI-I Connector,24+5,Angled/90°,White,Female/Jack,Though Hole,PCB Mount,Nut
- reliable and high-performance digital visual interface (DVI);
- providing plug and play connectivity for ease of use;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Consumer Electronics
- Set-top boxes
- High-end TVs/monitors
- Video graphics applications
- Personal computers
- business equipment
- Contact Resistance:20 Millohms Max
- Insulation Resistance:1000Megohms Min
- Dielectric Withstanding Volage:1000V DC
- Dielectric Withstanding Voltage:500V DC RMS ±50V 60HZ
- Current Rating:1.5AMP min
- Extraction force;1KGf Min. 4KGf Max
- Insertion force:4.5KGf Max
- Operating Temperature：-20°C~ + 85°C
|Center Contact Pin||Brass||------|
