Elecbee 433MHz 220V 2200W 4 Channel Wireless Remote Control Switch Relay Module Receiver

SKU: EB0042149-433-MH
Favorites
Key Features
Show More
Description
Specification:

1. Working voltage: AC85C-250V
2. Operating frequency: 433MHZ
3. Quiescent current: 8.5mA
4. Load power: 2200W
5. Receiving sensitivity: -105dBM
6. Work: Jog / self-locking / interlock
7. Output signal: four AC220V output voltage signal
8. Coding: learning code
9. Modulation: ASK
10. Working temperature: -10 ° C ~ +70 ° C
11.Channel: 4CH

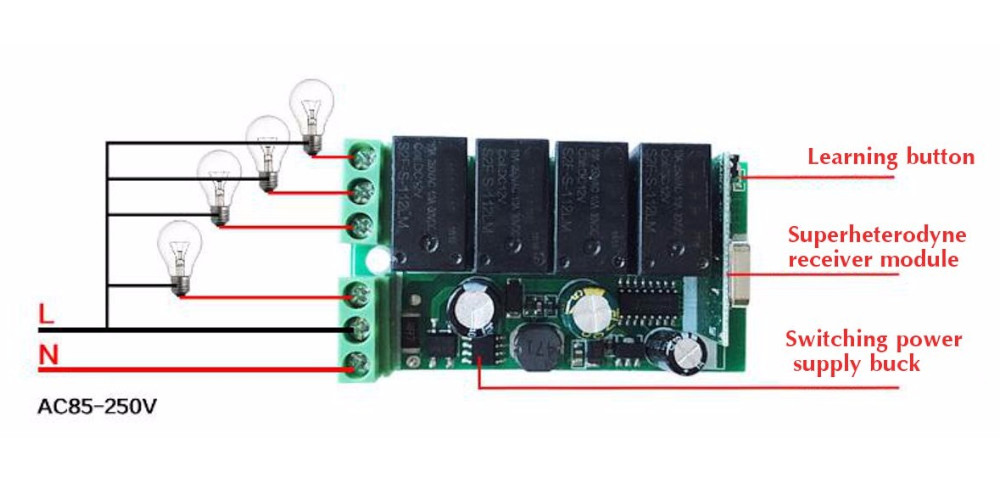

12. Wiring Method: Fixed wiring terminal
13.Rated load: 10A 250VAC / 10A 125VAC , 10A 30VDC / 10A 28VDC
14.Dimension: 6.5cm * 3.5cm * 1.7cm

Learning :

1. Jog mode: press the learning key once, the LED indicator light flashes once, etc. When the LED indicator light is on, press the remote control button that needs to code, the control panel LED indicator flashes 3 times successively.
2. Self-lock mode: press the learning button 2 times, LED indicator light flashing with 2 times, and so on LED lights lit and press the need for the code of the remote control button, the control panel LED indicator flashes 3 times success.
3. Interlock mode: press the learning key three times, LED indicator light flashes three times, and other LED lights and press the need for the code of the remote control button, the control panel LED indicator flashes 3 times a success code.

Clear:

Press the learning key 4 times, LED indicator light flashes with 4 times, then the LED will automatically flash 4 times, the clear code is completed, clear all previously learned remote control key code.

Notice:

When using for the first time, make sure to clear the factory code and clear the remote control code.




1 x 220V 4 Channel Wireless Relay Switch
